MP-Series Integrated Gear Motor Installation Instructions 17
Publication MP-IN003C-EN-P — April 2003

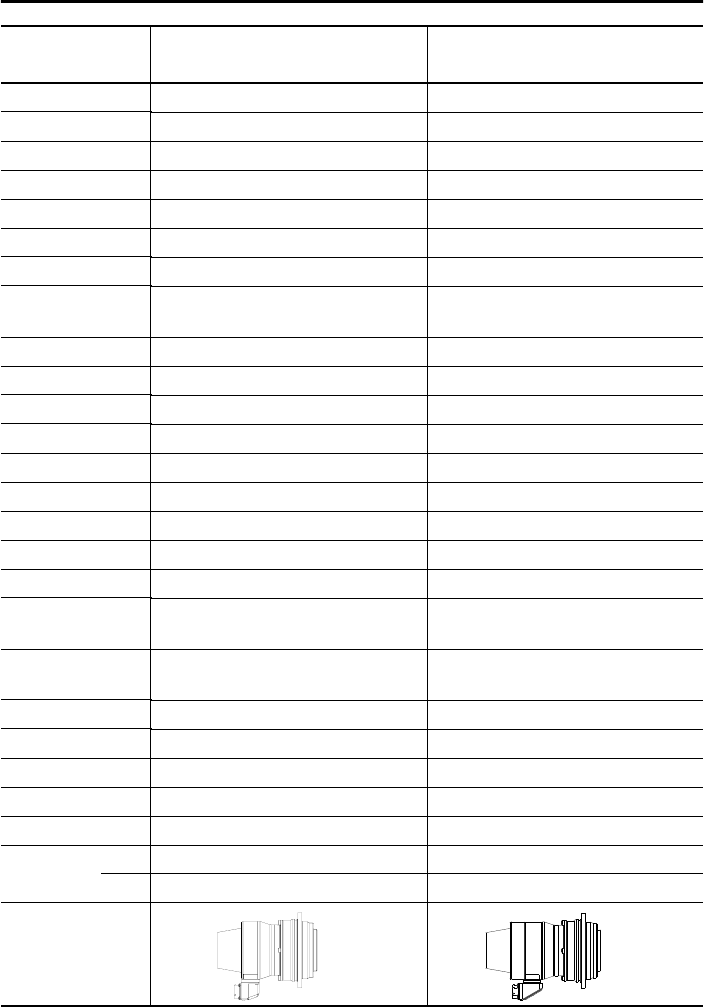

Motor Dimension
Symbol
1, 2
MPG-x025-091x22 MPG-x025-091x24
mm (in.) mm (in.)
AC
120 (4.72) 120 (4.72)
AD
96.5 (3.80) 95.6 (3.76)
AE
111.2 (4.38) 111.3 (4.38)
AF
85 (3.35) 85 (3.35)
AG
68.6 (2.70) 68.6 (2.70)
BE
67.7 (2.67) 88.9 (3.50)
D
79.97 - 80 (3.1484) - (3.1496) 79.97 - 80 (3.1484) - (3.1496)
DB
40 - 40.025 x
6 DP
(1.5748) - (1.5758)
x (0.24) DP
40 - 40.025 x
6 DP
(1.5748) - (1.5758)
x (0.24) DP
E
6 (0.24) 6 (0.24)
HD
169 (6.65) 168.1 (6.62)
L
192.5 (7.58) 221.1 (8.70)
L-LB
29 (1.14) 29 (1.14)
LA
8 (0.31) 8 (0.31)
LB
163.50 (6.44) 192.1 (7.56)
LD
131.00 (5.16) 140.9 (5.55)
LE
46.50 (1.83) 46.50 (1.83)
M
135.00 (5.31) 135.00 (5.31)
MA on MC
M6 x 12
on 63 BC
M6 x (0.47)
on (2.48) BC
M6 x 12
on 63 BC
M6 x (0.47)
on (2.48) BC
MB
6 - 6.012
x 7 DP
(0.2362) - (0.2367)
x (0.28) DP
6 - 6.012
x 7 DP
(0.2362) - (0.2367)
x (0.28) DP
N
109.965 - 110 (4.3293) - (4.3307) 109.965 - 110 (4.3293) - (4.3307)
NB
105.00 (4.13) 105.00 (4.13)
P
145.00 (5.71) 145 (5.71)
S on M
5.5 on 135 BC (0.22) on (5.31) BC 5.5 on 135 BC (0.22) on (5.31) BC
T
10.00 (0.39) 10.00 (0.39)
Bolt Hole
BHP 45
o
45
o
Patterns:
BHPA 22.5
o
22.5
o
Motor Outline
1
Motors are designed to metric dimensions (inch references are mathematical conversions).
2
Abbreviations: BC = Bolt Circle, BHP/BHPA = Bolt Hole Pattern/Auxiliary BHP, DP = Depth.
