16 MP-Series Integrated Gear Motor Installation Instructions
Publication MP-IN003C-EN-P — April 2003

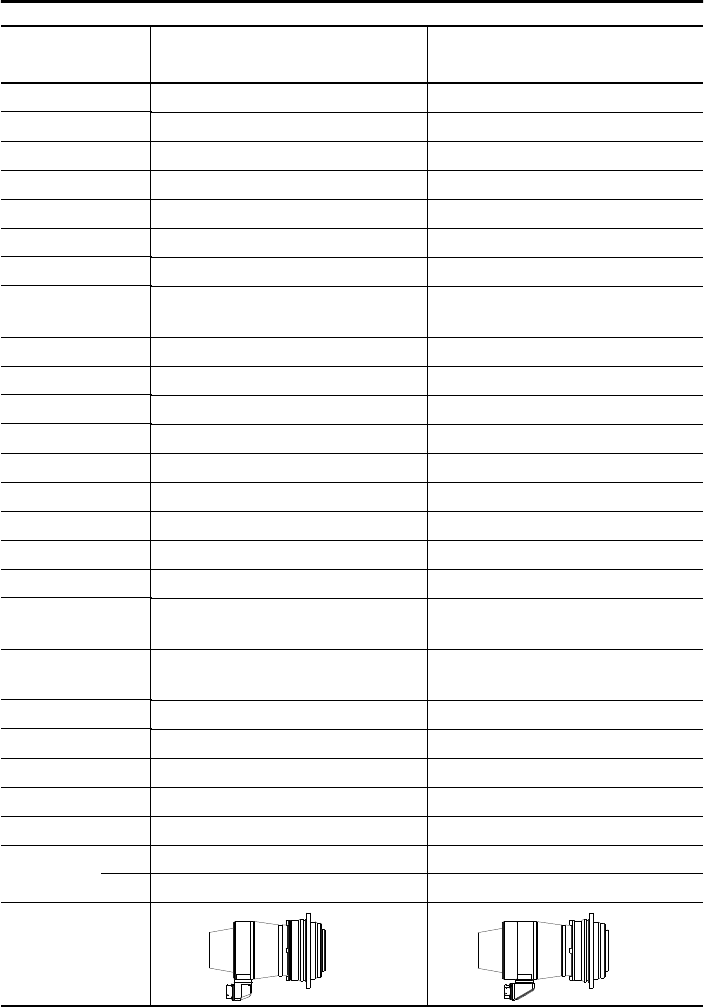

Motor Dimension
Symbol
1, 2
MPG-x025-031x22 MPG-x025-031x24
mm (in.) mm (in.)
AC
120 (4.72) 120 (4.72)
AD
96.5 (3.80) 95.6 (3.76)
AE
111.2 (4.38) 111.2 (4.38)
AF
85 (3.35) 85 (3.35)
AG
68.6 (2.70) 68.6 (2.70)
BE
67.7 (2.67) 88.9 (3.50)
D
79.97 - 80 (3.1484) - (3.1496) 79.97 - 80 (3.1484) - (3.1496)
DB
40 - 40.025 x
6 DP
(1.5748) - (1.5758)
x (0.24) DP
40 - 40.025 x
6 DP
(1.5748) - (1.5758)
x (0.24) DP
E
6.00 (0.24) 6 (0.24)
HD
169.00 (6.65) 168.1 (6.62)
L
222.50 (8.76) 251.10 (9.88)
L-LB
29.00 (1.14) 29.00 (1.14)
LA
8.00 (0.31) 8.00 (0.31)
LB
193.50 (7.62) 222.10 (8.74)
LD
161.00 (6.34) 170.90 (6.73)
LE
46.50 (1.83) 46.50 (1.83)
M
135.00 (5.31) 135.00 (5.31)
MA on MC
M6 x 12
on 63 BC
M6 x (0.47)
on (2.48) BC
M6 x 12
on 63 BC
M6 x (0.47)
on (2.48) BC
MB
6 - 6.012
x 7 DP
(0.2362) - (0.2367)
x (0.28) DP
6 - 6.012
x 7 DP
(0.2362) - (0.2367)
x (0.28) DP
N
109.965 - 110 (4.3293) - (4.3307) 109.965 - 110 (4.3293) - (4.3307)
NB
105.00 (4.13) 105.00 (4.13)
P
145.00 (5.71) 145.00 (5.71)
S on M
5.5 on 135 BC (0.22) on (5.31) BC 5.5 on 135 BC (0.22) on (5.31) BC
T
10.00 (0.39) 10.00 (0.39)
Bolt Hole
BHP 45
o
45
o
Patterns:
BHPA 22.5
o
22.5
o
Motor Outline
1
Motors are designed to metric dimensions (inch references are mathematical conversions).
2
Abbreviations: BC = Bolt Circle, BHP/BHPA = Bolt Hole Patterns, DP = Depth.
