14 MP-Series Integrated Gear Motor Installation Instructions
Publication MP-IN003C-EN-P — April 2003

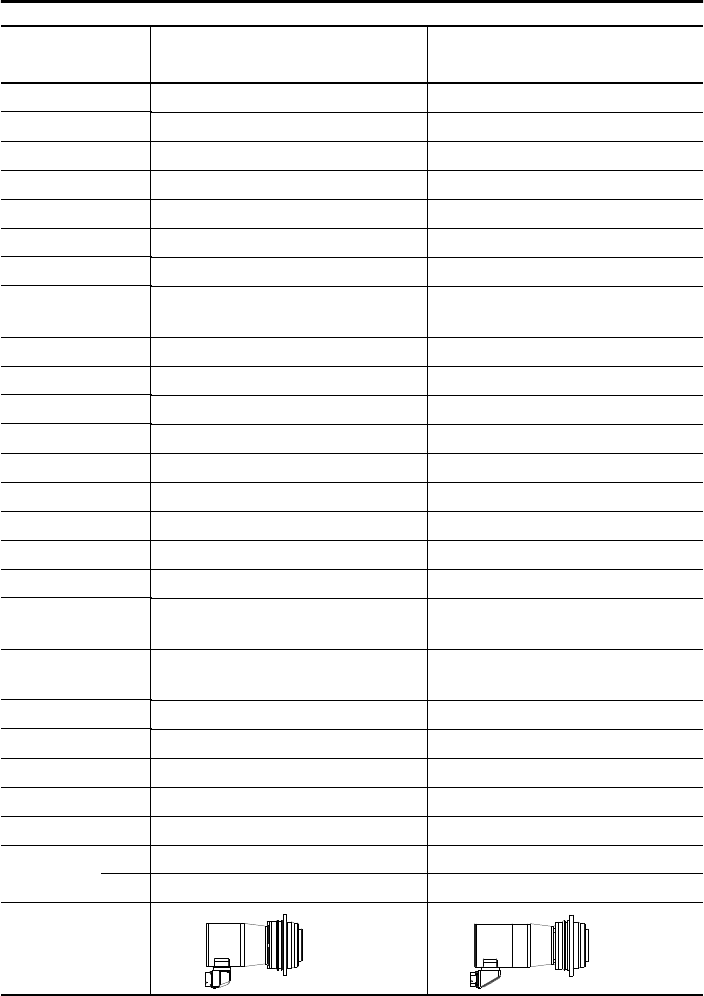

Motor Dimension
Symbol
1, 2
MPG-x010-031x22 MPG-x010-031x24
mm (in.) mm (in.)
AC
95.00 (3.74) 95 (3.74)
AD
82.60 (3.25) 81.7 (3.22)
AE
83.20 (3.28) 83.20 (3.28)
AF
N/A N/A
AG
N/A N/A
BE
67.70 (2.67) 88.90 (3.50)
D
62.97 - 63 (2.4791) - (2.4803) 62.97 - 63 (2.4791) - (2.4803)
DB
31.5 - 31.525
x 6 DP
(1.2402) - (1.2411)
x (0.24) DP
31.5 - 31.525
x 6 DP
(1.2402) - (1.2411)
x (0.24) DP
E
6.00 (0.24) 6 (0.24)
HD
141.60 (5.57) 140.70 (5.54)
L
184.5 (7.26) 219.50 (8.64)
L-LB
30.00 (1.18) 30.00 (1.18)
LA
7.00 (0.28) 7.00 (0.28)
LB
154.50 (6.08) 189.50 (7.46)
LD
156.50 (6.16) 197.10 (7.76)
LE
N/A N/A
M
109.00 (4.29) 109.00 (4.29)
MA on MC
M6 x 10
on 50 BC
M6 x (0.39)
on (1.97) BC
M6 x 10
on 50 BC
M6 x (0.39)
on (1.97) BC
MB
6 - 6.012
x 7 DP
(0.2362) - (0.2367)
x (0.28) DP
6 - 6.012
x 7 DP
(0.2362) - (0.2367)
x (0.28) DP
N
89.965 - 90 (3.5419) - (3.5433) 89.965 - 90 (3.5419) - (3.5433)
NB
85.00 (3.35) 85.00 (3.35)
P
118.00 (4.65) 118.00 (4.65)
S on M
5.5 on 109 BC (0.22) on (4.29) BC 5.5 on 109 BC (0.22) on (4.29) BC
T
10.00 (0.39) 10.00 (0.39)
Bolt Hole/
BHP 45
o
45
o
Patterns:
BHPA N/A N/A
Motor Outline
1
Motors are designed to metric dimensions (inch references are mathematical conversions).
2
Abbreviations: BC = Bolt Circle, BHP/BHPA = Bolt Hole Patterns, DP = Depth.
