MP-Series Integrated Gear Motor Installation Instructions 13
Publication MP-IN003C-EN-P — April 2003

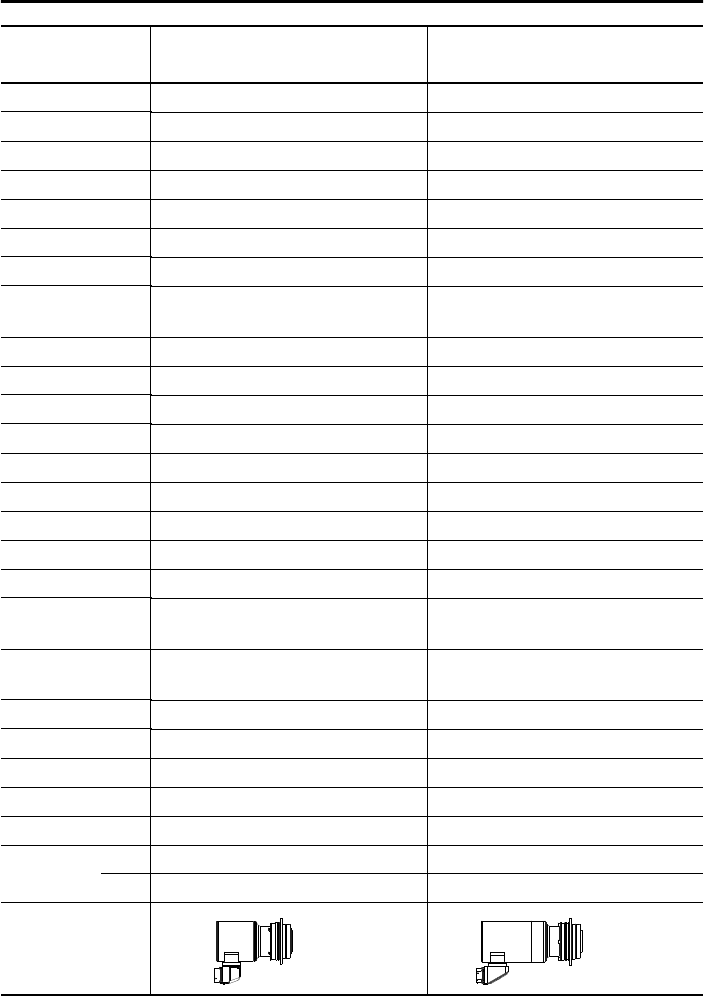

Motor Dimension
Symbol
1, 2
MPG-A004-091x22 MPG-A004-091x24
mm (in.) mm (in.)
AC
70 (2.76) 70 (2.76)
AD
80 (3.15) 79.1 (3.11)
AE
75 (2.95) 75 (2.95)
AF
N/A N/A
AG
N/A N/A
BE
67.7 (2.67) 88.9 (3.50)
D
39.975 - 40 (1.5738) - (1.5748) 39.975 - 40 (1.5738) - (1.5748)
DB
20 - 20.021
x 4 DP
(0.7874) - (0.7882)
x (0.16) DP
20 - 20.021 x 4 DP (0.7874) - (0.7882)
x (0.16) DP
E
3 (0.12) 3 (0.12)
HD
123 (4.84) 122.1 (4.81)
L
141.7 (5.58) 185.2 (7.29)
L-LB
19.5 (0.77) 19.5 (0.77)
LA
4 (0.16) 4 (0.16)
LB
122.2 (4.81) 165.7 (6.52)
LD
125.9 (4.96) 174.5 (6.87)
LE
N/A N/A
M
79 (3.11) 79 (3.11)
MA on MC
M5 x 7
on 31.5 BC
M5 x (0.28)
on (1.24) BC
M5 x 7
on 31.5 BC
M5 x (0.28)
on (1.24) BC
MB
5 - 5.012
x 6 DP
(0.1967) - (0.1973)
x (0.24) DP
5 - 5.012
x 6 DP
(0.1967) - (0.1973)
x (0.24) DP
N
63.97 - 64 (2.5185) - (2.5197) 63.97 - 64 (2.5185) - (2.5197)
NB
63 (2.48) 63 (2.48)
P
86 (3.39) 86 (3.39)
S on M
4.5 on 79 BC (0.18) on (3.11) BC 4.5 on 79 BC (0.18) on (3.11) BC
T
7 (0.28) 7 (0.28)
Bolt Hole
BHP 45
o
45
o
Patterns:
BHPA N/A N/A
Motor Outline
1
Motors are designed to metric dimensions (inch references are mathematical conversions).
2
Abbreviations: BC = Bolt Circle, BHP/BHPA = Bolt Hole Patterns, DP = Depth.
