Chapter 5 Program a Project Offline
Check Alias Tags

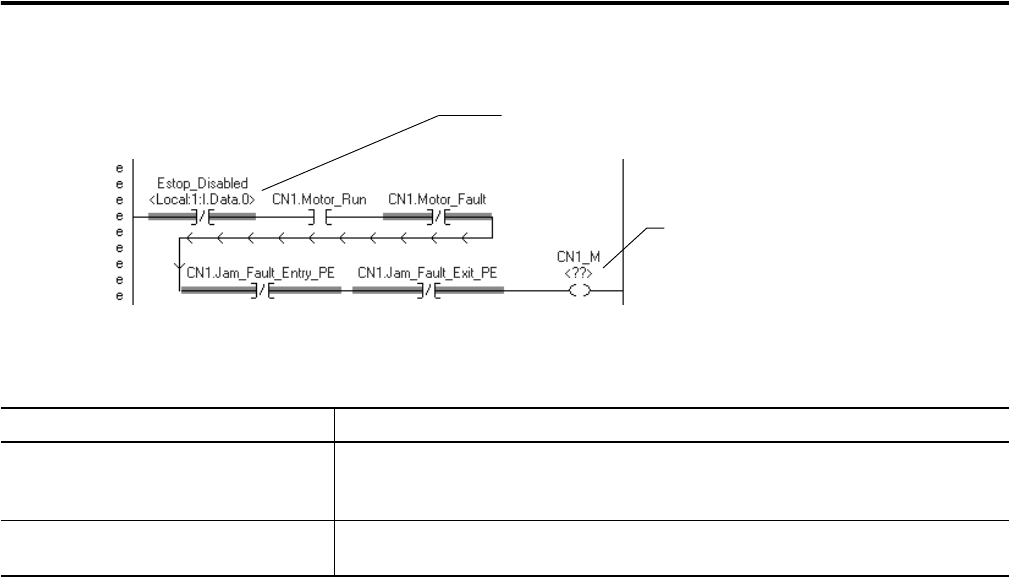

Check the alias tags in the rungs you import.
Item Description
A If you import an alias tag, make sure it points to the correct base tag. When a tag is an alias
for a tag that already exists in the project, the software sets up the relationship between
the alias and base tags.
B If the project does not have the base tag, you have to either create the base tag or point the
alias to a different base tag.
A
B
