74 Publication 1756-QS001E-EN-P - October 2009
Chapter 5 Program a Project Offline
Export Rungs

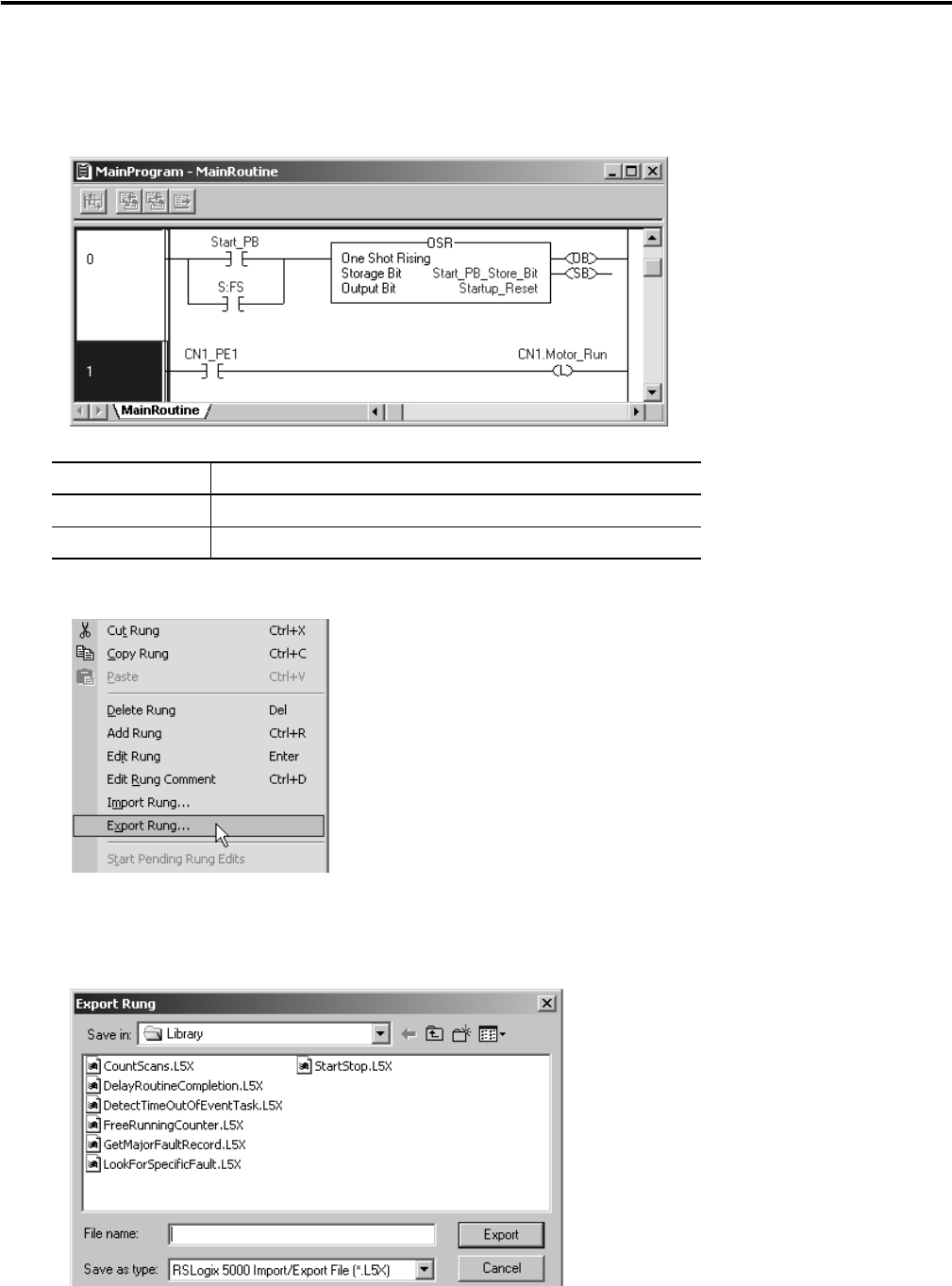

1. Select the rungs to export.
2. Right-click the selection and choose Export Rung.
3. Choose a location and name for the file.
4. Create the file.
If rungs are Do this
In sequence Click the first rung and then Shift + click the last rung.
Out Of sequence Click the first rung and then Ctrl + click each additional rung.
