Publication 1756-QS001E-EN-P - October 2009 71
Program a Project Offline Chapter 5

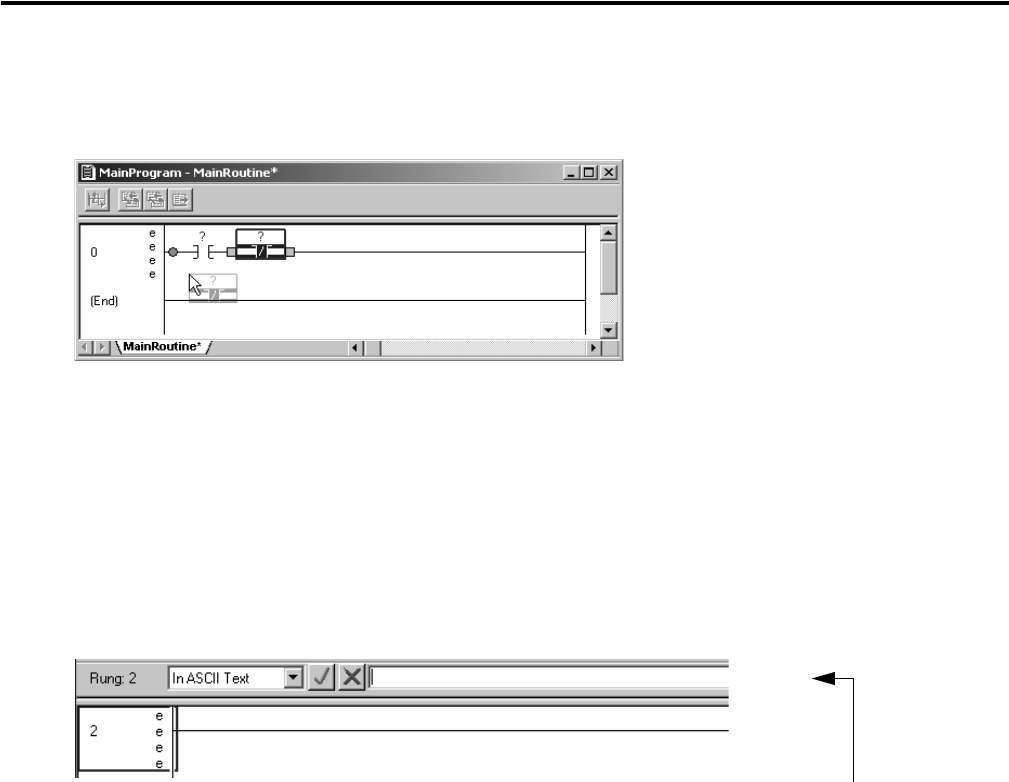

4. To move an instruction, branch, or rung to a different location, use the mouse to drag it there.
A green dot shows a valid placement location (drop point).
Enter Logic Using ASCII Text
You can add elements by using the typing their ASCII equivalents.
1. Double-click the rung.
2. Enter the ASCII text for the rung.
