Publication 1756-QS001E-EN-P - October 2009 69
Program a Project Offline Chapter 5

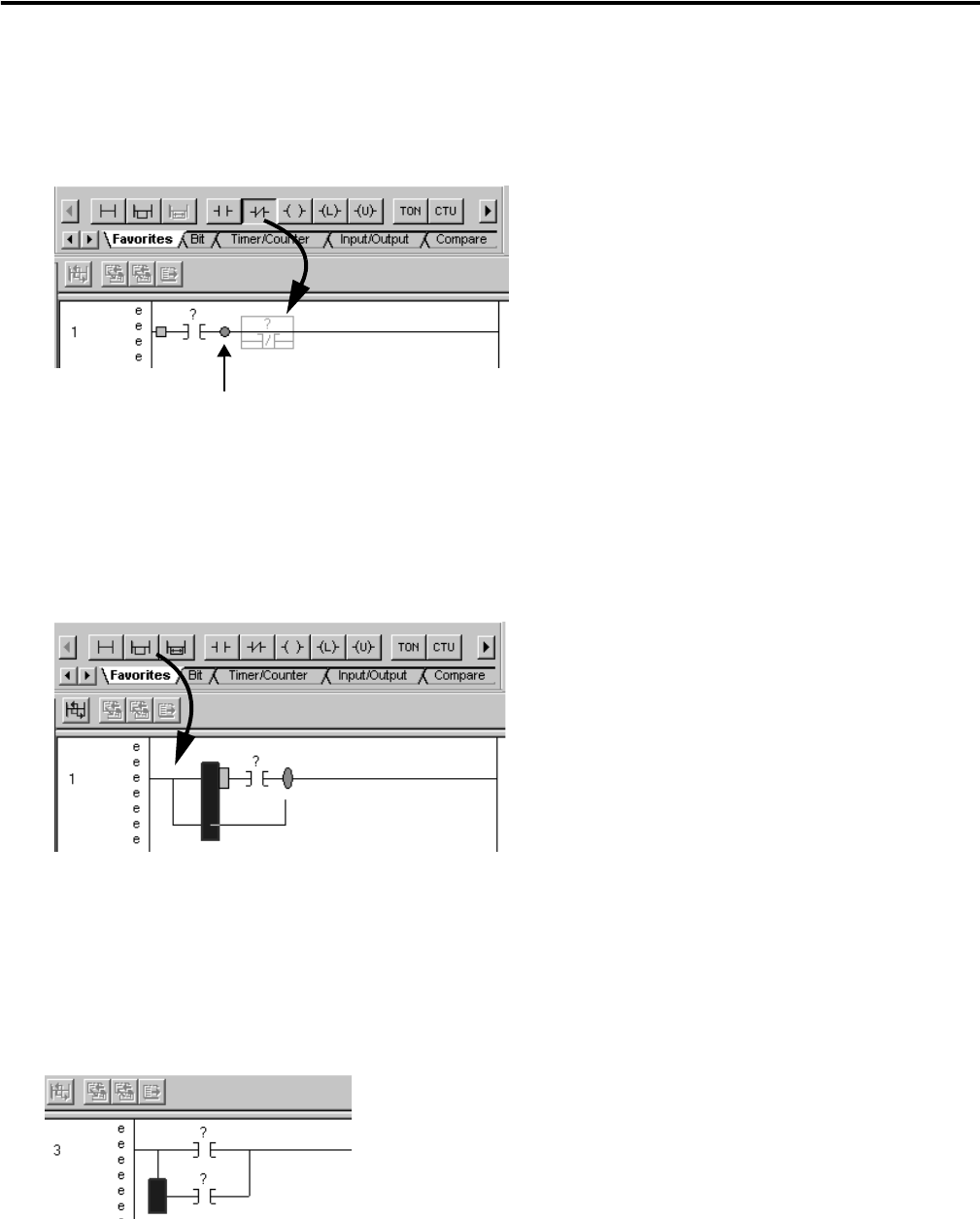

Add a Rung or an Instruction
Drag the button for the rung or instruction directly to the desired location. A green dot shows a valid
placement location (drop point).
Add a Branch
1. Drag the branch button to where the branch starts.
A green dot shows a valid placement location (drop point).
2. Drag a branch rail to the desired location.
Add a Level to a Branch
Right-click the branch and choose Add Branch Level.
