64 Publication 1756-QS001E-EN-P - October 2009
Chapter 4 Program an Equipment Phase

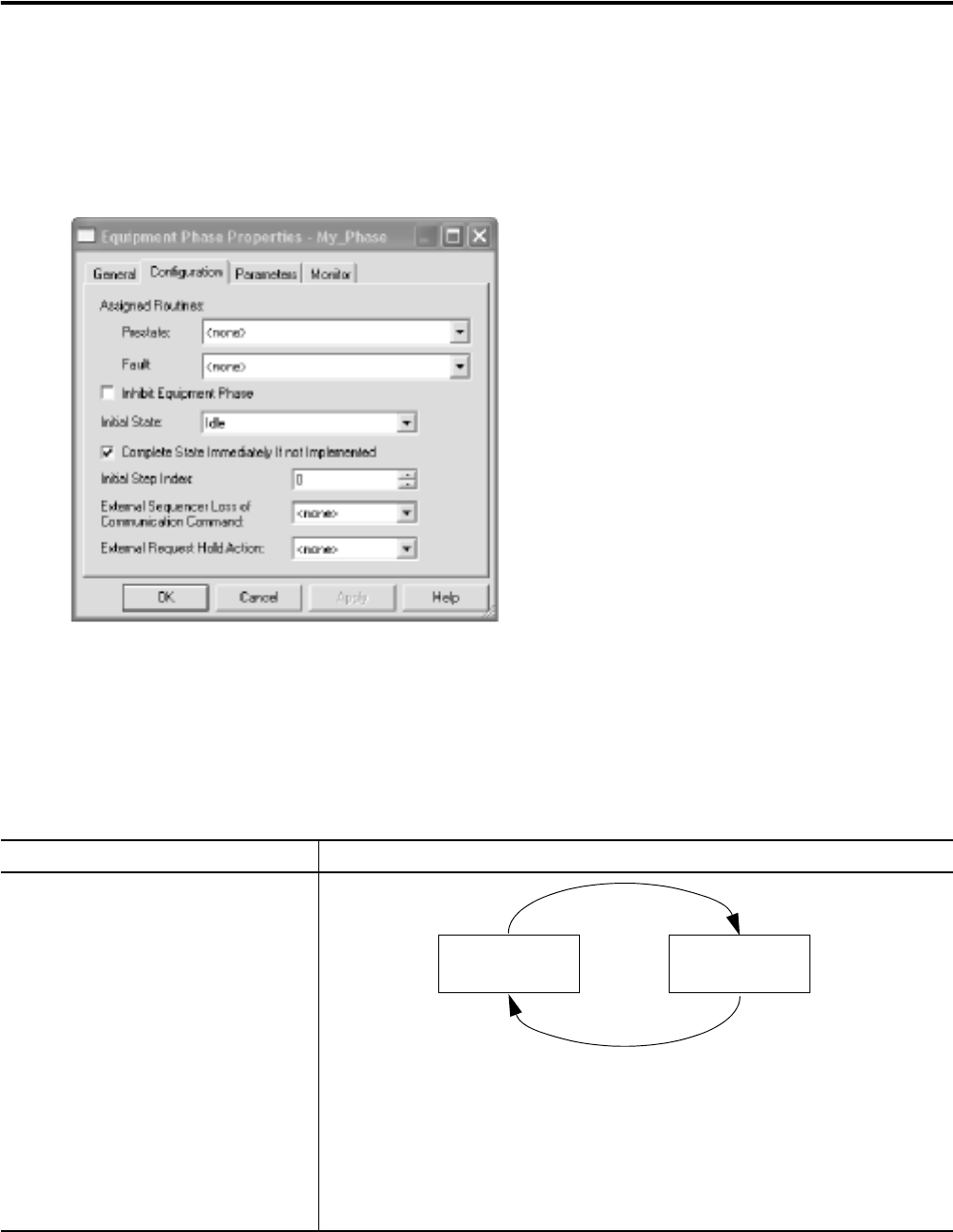

Open the Configuration for an Equipment Phase
1. Right-click the equipment phase and choose Properties.
2. Click the Configuration tab.
Configure an Equipment Phase
Use the following settings to configure an equipment phase.
Setting Choices
Prestate
The prestate routine runs all the time, even when the equipment phase is in the idle state.
It runs before each scan of a state.
Do you want to run a prestate routine?
• Yes — Select the routine that you want to run.
• No — Leave this box set to <none>
current state
routine
prestate routine
