60 Publication 1756-QS001E-EN-P - October 2009
Chapter 4 Program an Equipment Phase
Create an Equipment Phase

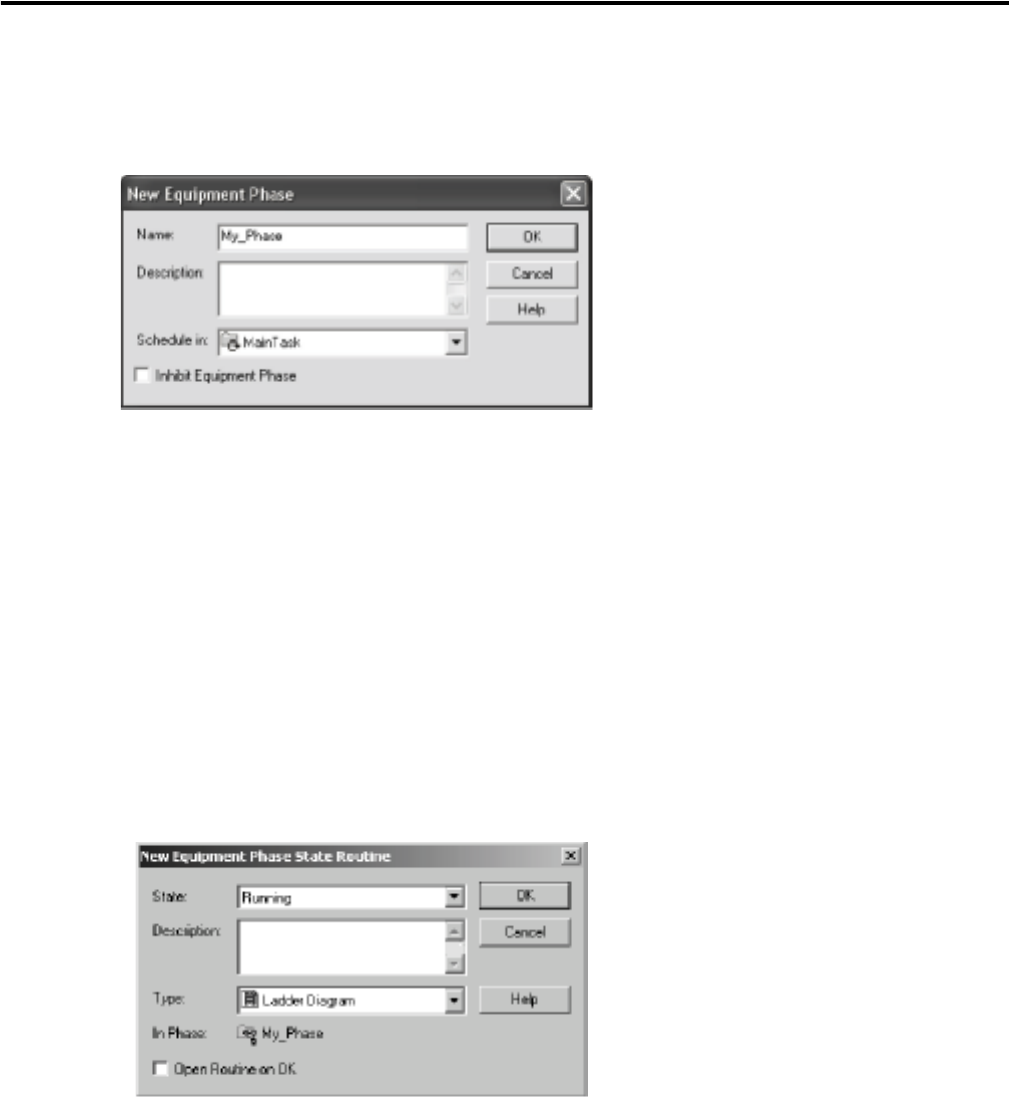

1. Right-click Main Task and choose New Equipment Phase.
2. Type a name for the equipment phase and click OK.
Create a State Routine
1. Right-click Main Task and choose the equipment phase.
2. Choose New Phase State Routine.
3. Type a name for the state routine.
4. Select the programming language and click OK.
