Chapter 3 Program Add-On Instructions

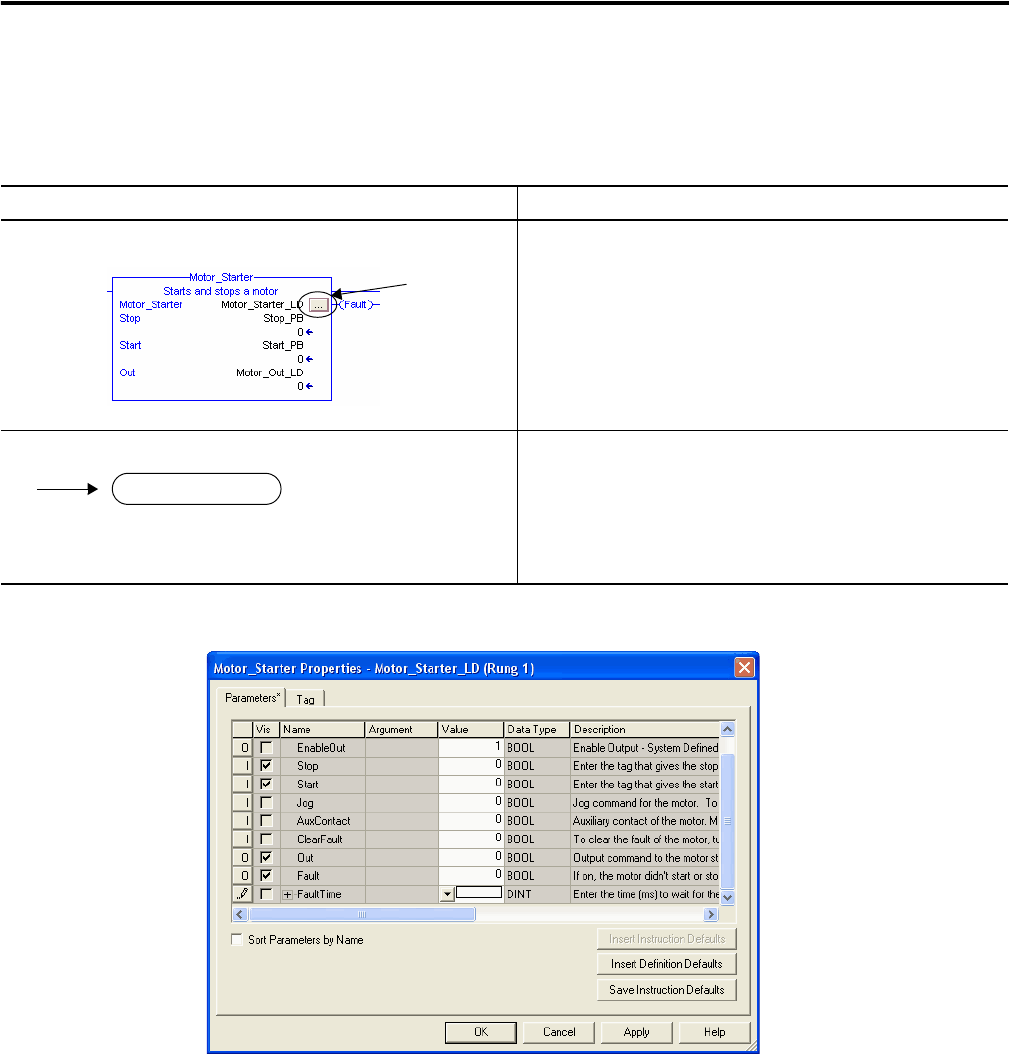

Monitor or Change the Value of a Parameter of an Add-On Instruction
Use the Properties dialog to monitor or change a parameter value of an Add-On Instruction.
1. Click and type the new value.
2. Click Apply.
3. Click OK.
Routine Type Parameters
Ladder logic or function block Click the Properties button for the instruction.
Structured text Right-click the instruction and choose Properties.
Motor_Starter(Motor_St
arter_ST,Stop_PB,Start
_PB,Motor_Out_ST);
