Chapter 3 Program Add-On Instructions
Import an Add-On Instruction Definition
You can add the definition of an Add-On Instruction that was exported from another RSLogix 5000 project.
Does the RSLogix 5000 project already have a revision of this Add-On Instruction?
• No — use this procedure to import the instruction.
• Yes — see Update an Add-On Instruction to a Newer Revision on page 58

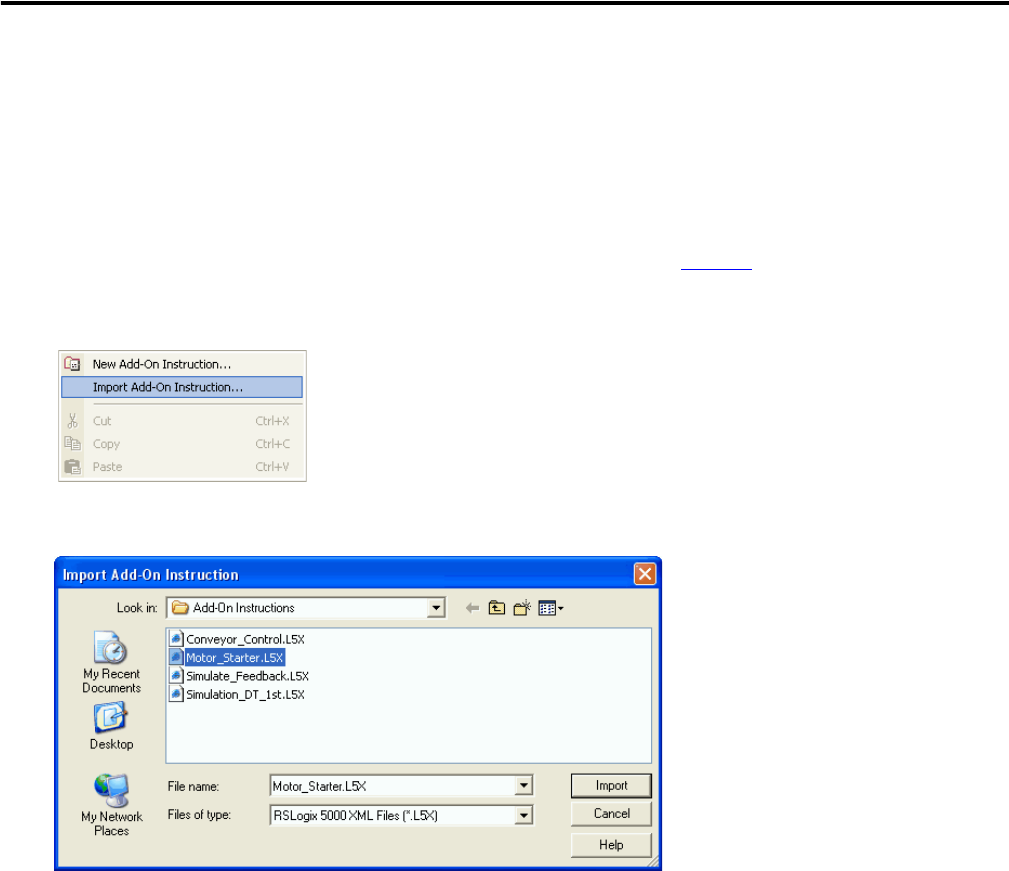

1. Right-click the Add-On Instructions folder and choose Import Add-On Instruction.
2. Find the instruction.
3. Select the instruction and click Import.
