42 Publication 1756-QS001E-EN-P - October 2009
Chapter 2 Organize a Project

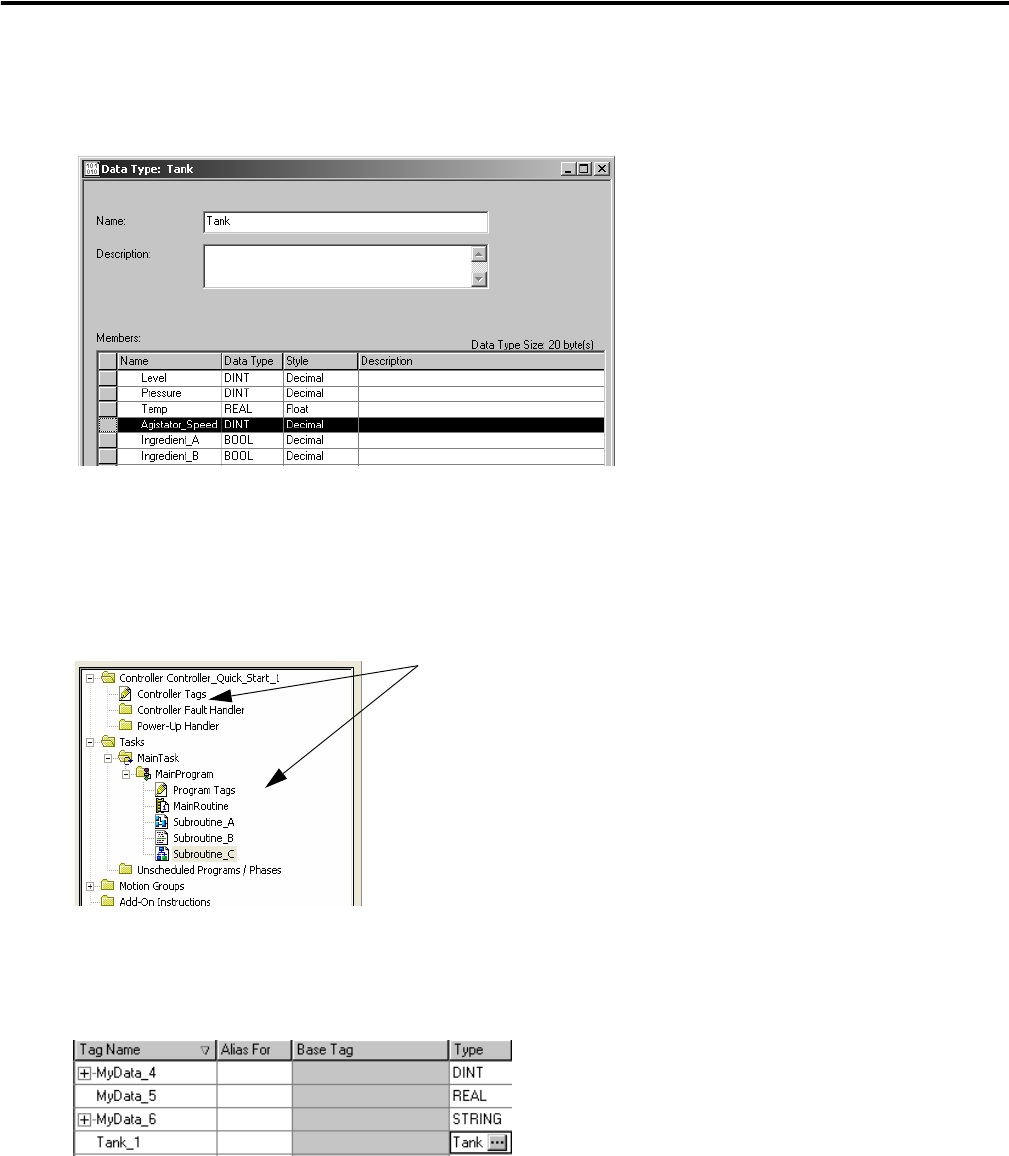

3. Enter the members.
As an option, type a description for each member.
4. Click OK.
Follow these steps to create a tag that uses a user-defined data type.
1. Right-click the scope that you want for the tag and choose Edit Tags.
2. Type a name for the tag.
3. Type the name of the user-defined data type.
