32 Publication 1756-QS001E-EN-P - October 2009
Chapter 1 Program and Test a Simple Project
Select the Operating Mode of the Controller
To execute or stop executing the logic in a controller, change the operating mode of the controller.

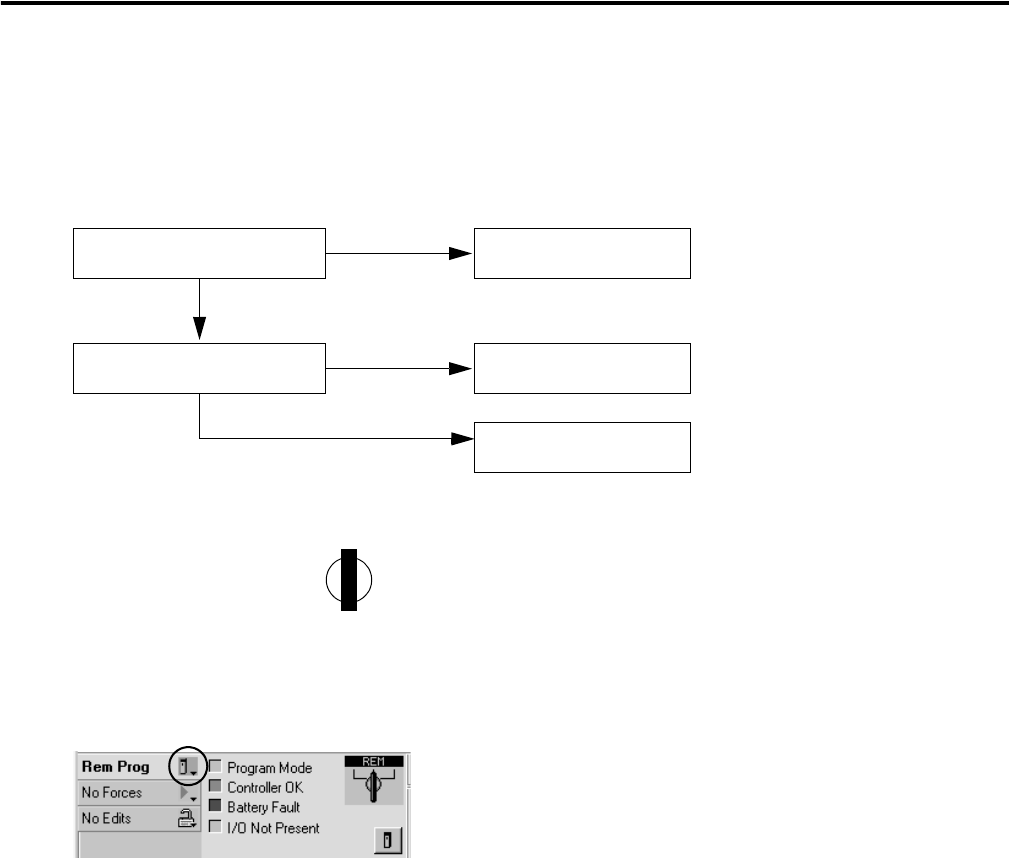

1. Determine which mode you want for the controller.
2. Turn the keyswitch to
3. Go online with the controller.
4. Select the mode.
Do you want to execute the
logic in the controller?
Choose Program mode.
Yes
Choose Run mode.
No
No
Yes
Choose Test mode.
Do you want the logic to
control the output devices?
RUN REM PROG
