Publication 1756-QS001E-EN-P - October 2009 31
Program and Test a Simple Project Chapter 1

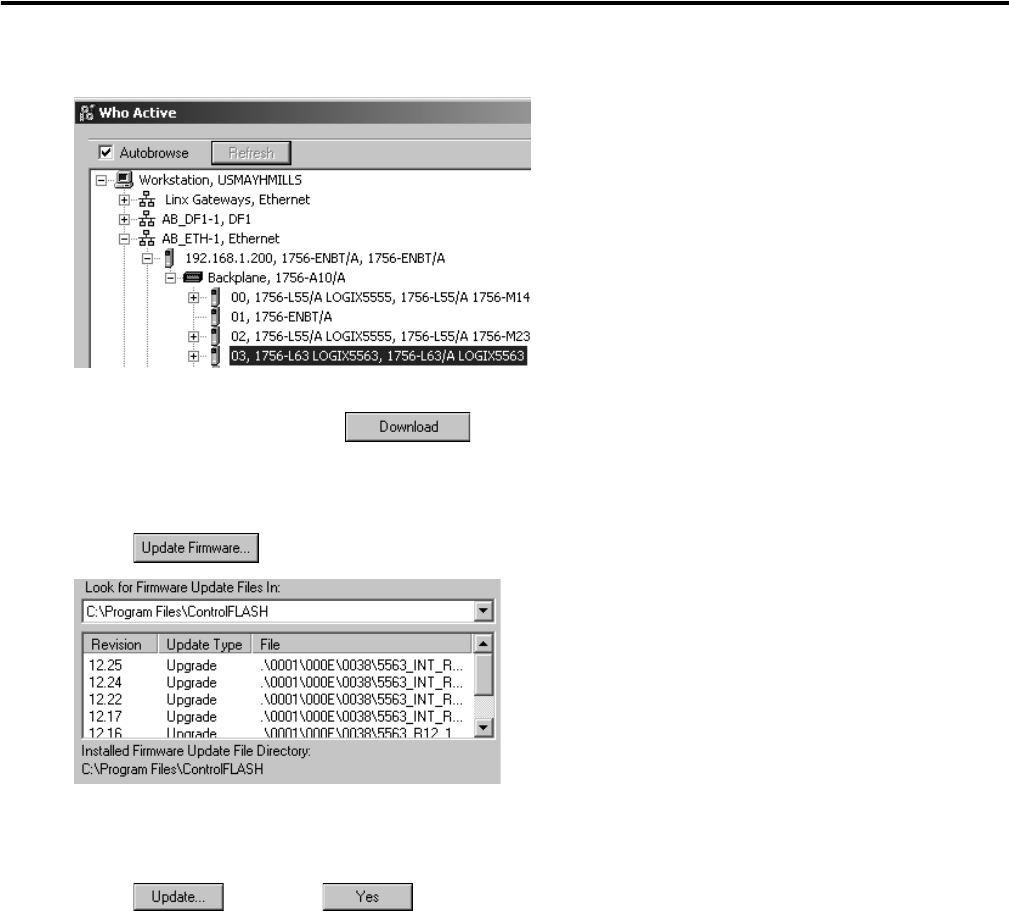

4. Browse to the controller.
5. To download the project, click .
If the process failed to download to the controller. The revision of the offline project and controller’s
firmware are not compatible.
1. Choose .
2. Select the revision for the controller.
3. Choose and then .
