24 Publication 1756-QS001E-EN-P - October 2009
Chapter 1 Program and Test a Simple Project

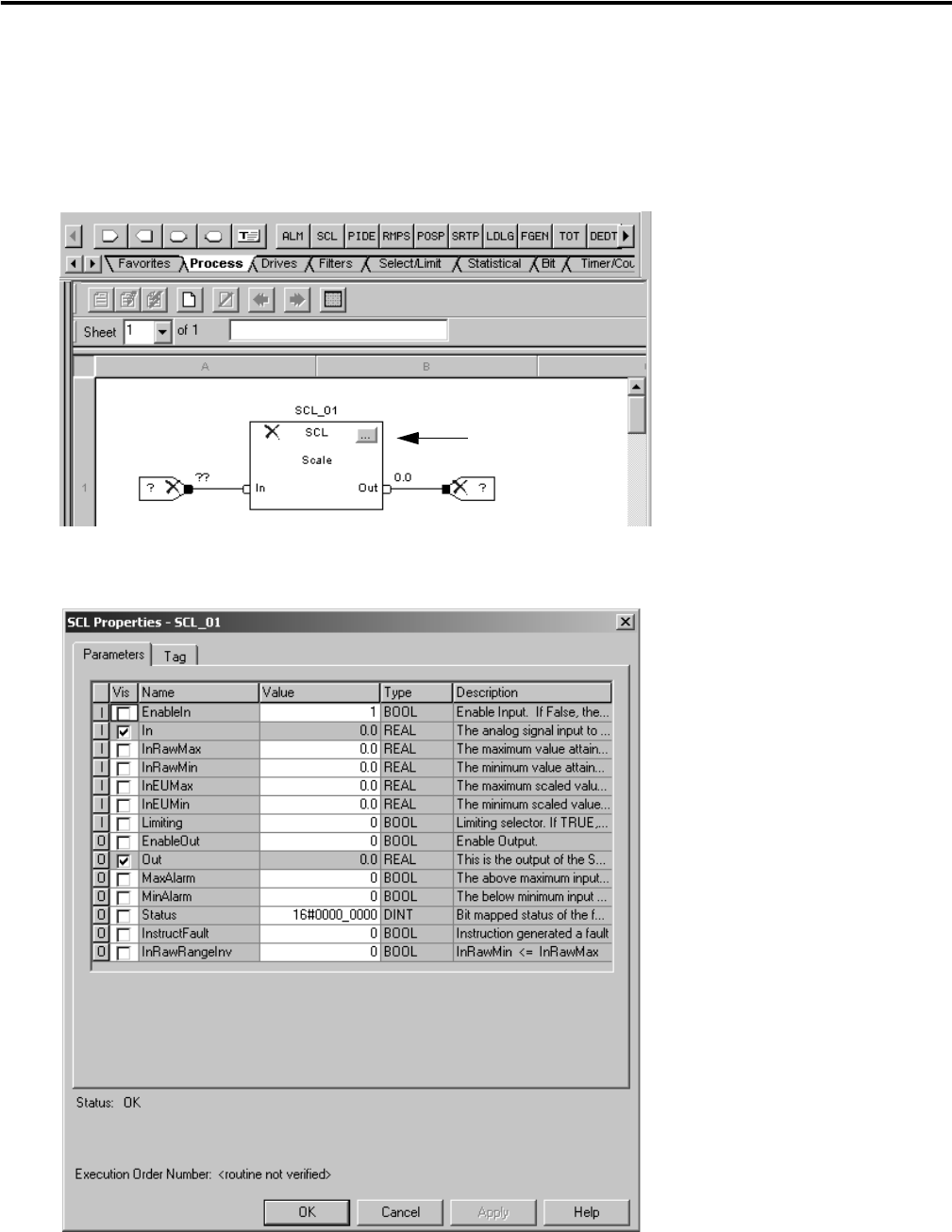

Configure a Function Block Instruction
Assign specific values (parameters) to configure a function block instruction.
1. Click the configuration button.
2. To change the value of a parameter, click the value cell, type the new value, and click Enter.
