18 Publication 1756-QS001E-EN-P - October 2009
Chapter 1 Program and Test a Simple Project

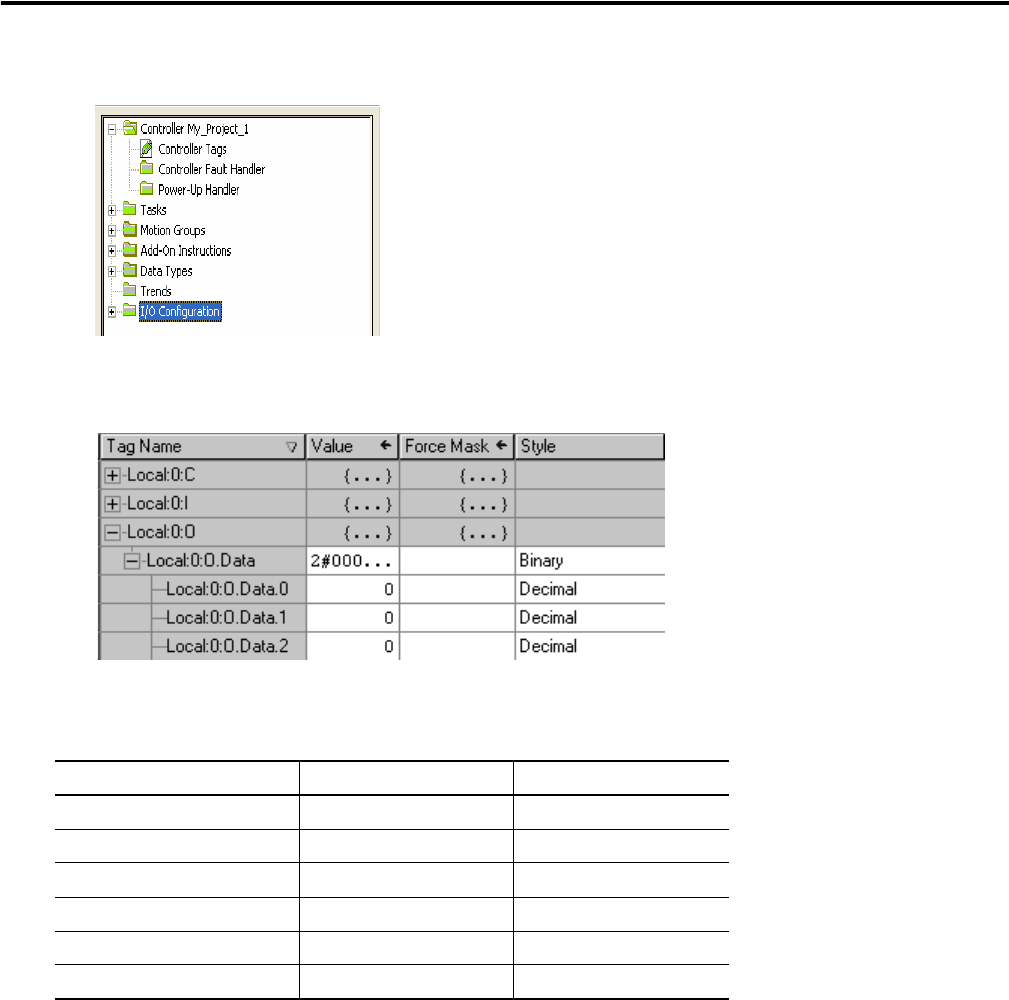

1. Right-click Controller Tags and choose Monitor Tags.
The Tag Monitor displays the tags.
Values are shown in the following styles.
A blue arrow indicates that when you change the value, it immediately takes effect.
2. To see a value in a different style, select the desired style.
3. To change a value, click the Value cell, type the new value, and click Enter.
4. To expand a tag and show its members, click the + sign.
Style Base Notation
Binary 2 2#
Decimal 10 NA
Hexadecimal 16 16#
Octal 8 8#
Exponential NA 0.0000000e+000
Float NA 0.0
