Chapter 7 Troubleshoot the Controller
Remove an Individual Force

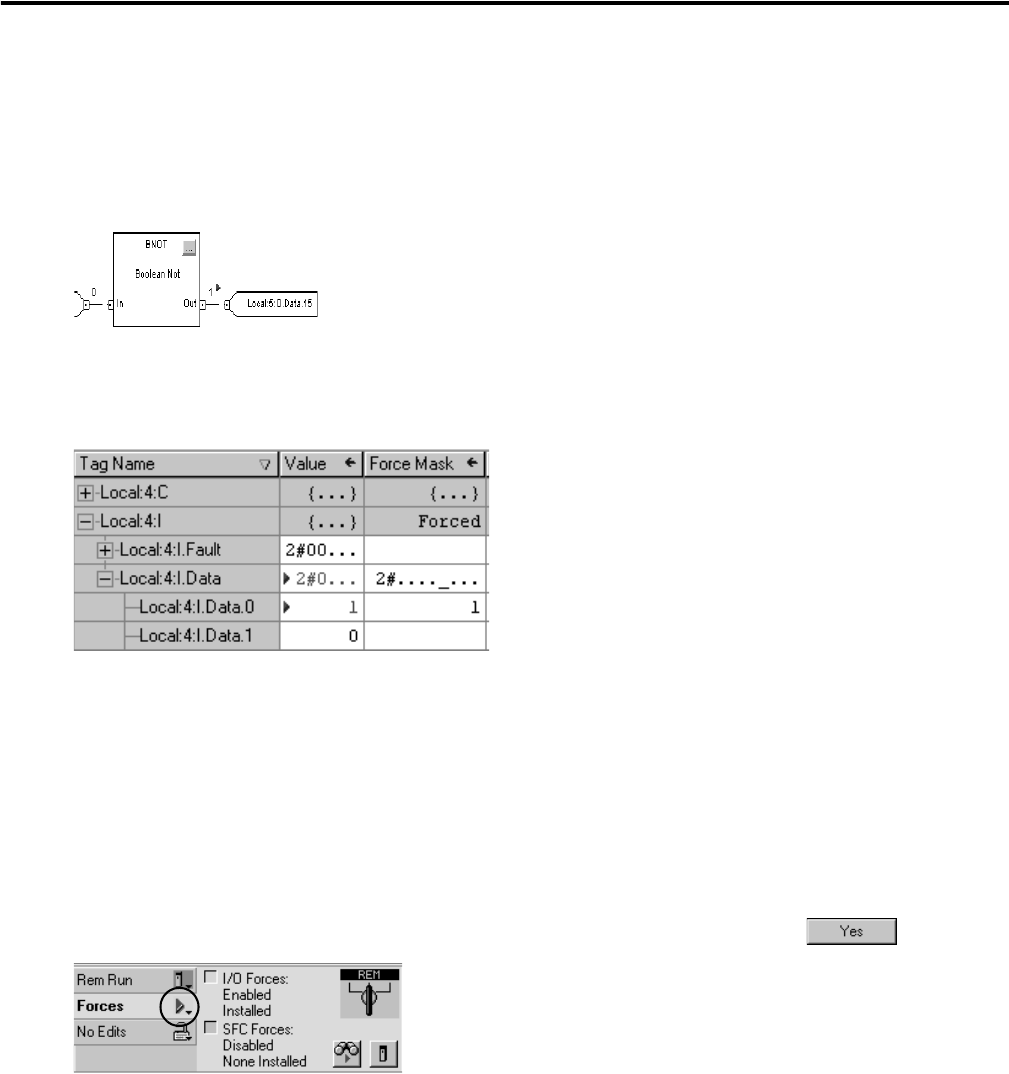

1. Go online with the controller and open the routine that contains the tag that you want to force.
2. Right-click the tag and choose Monitor.
3. If necessary, click the + sign of the tag to show its members (for example, the BOOL value of a DINT
tag).
4. Right-click the tag and choose Remove Force.
Disable All I/O Forces
1. Go online with the controller.
2. From the Forces menu, choose I/O Forcing > Disable All I/O Forces and click .
