130 Publication 1756-QS001E-EN-P - October 2009
Chapter 7 Troubleshoot the Controller
3. To go to an instruction, double-click it.
Browse Logic

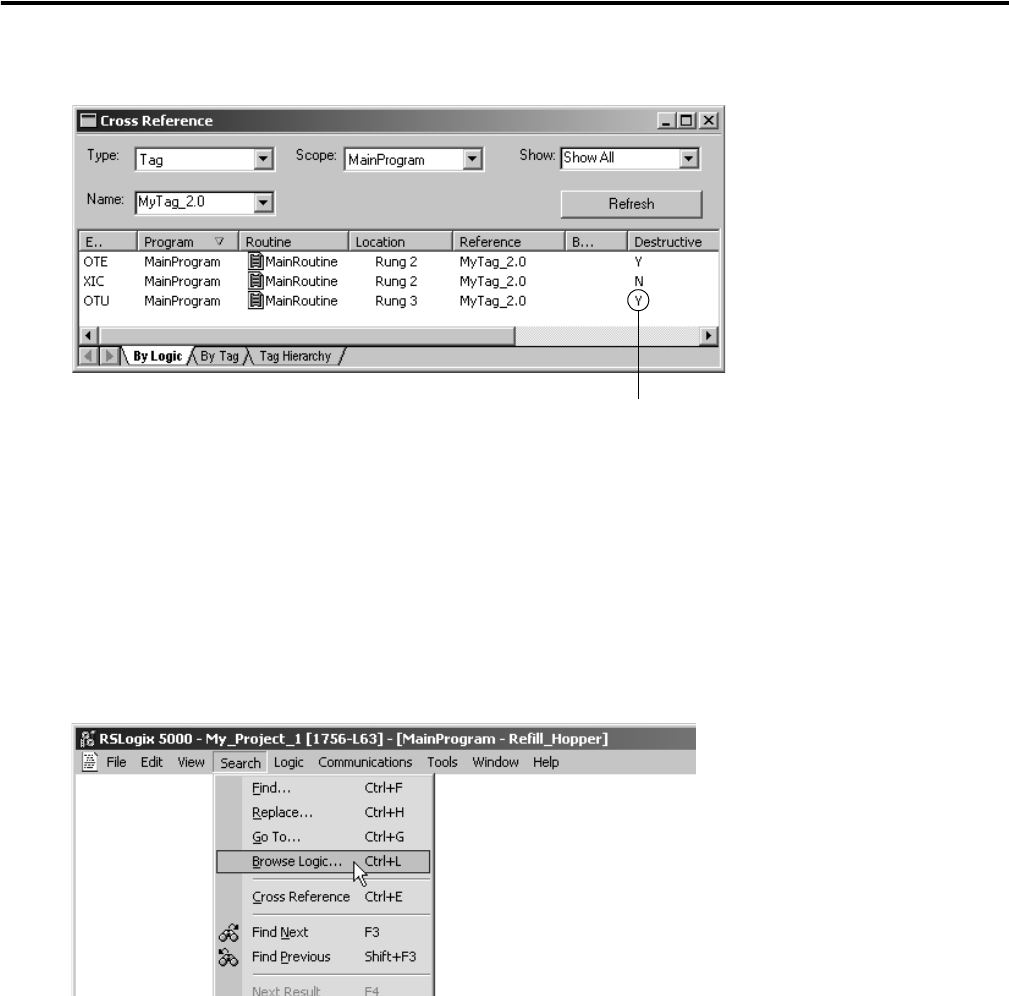

To browse the logic of a routine for a specific item (such as an instruction, element, tag, or comment), use the
Browse Logic window.
1. In RSLogix 5000 software, from the Search menu, choose Browse Logic.
A “Y” means this instruction changes the value of the tag.
