Publication 1756-QS001E-EN-P - October 2009 129
Troubleshoot the Controller Chapter 7

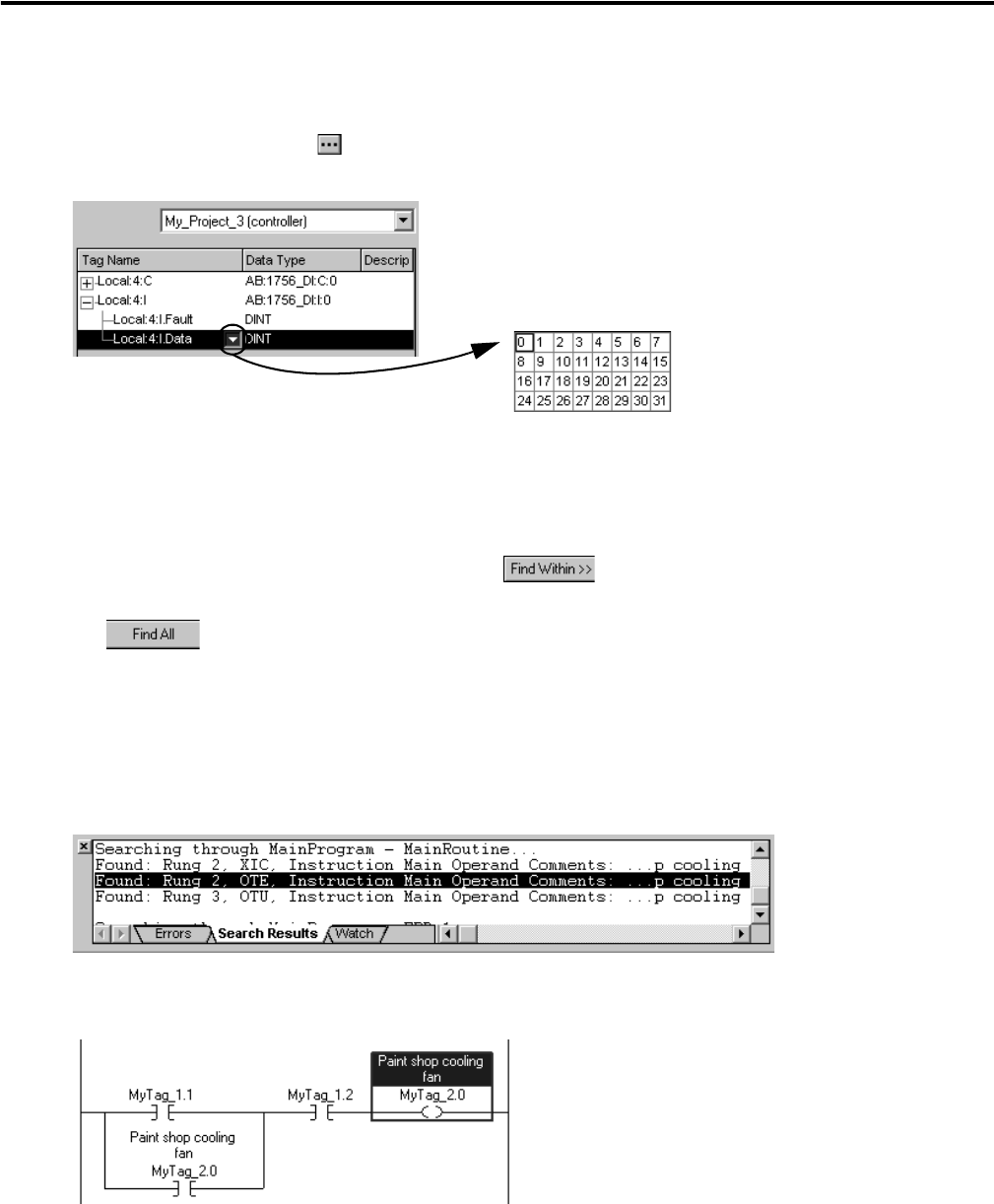

3. Specify the search criteria.
a. Type the characters to find.
To browse for a tag, click , select the tag, and click OK.
To select a bit number, click the b.
b. Choose Text Only.
c. Choose All Routines.
d. Select each language and check the options in which to search.
To display this section of the dialog box, click .
4. Click .
Go to an Instruction
1. To go to an instruction, double-click it.
2. To show a list of cross-references to a tag, right-click and choose Go To Cross Reference.
