Chapter 7 Troubleshoot the Controller
Search Functions in a Project
You can find an element of your logic (such as a tag, instruction, or comment) based on the characters that
you search for.
Search for All Occurrences of a Element
1. Open the RSLogix 5000 project that you want to search.

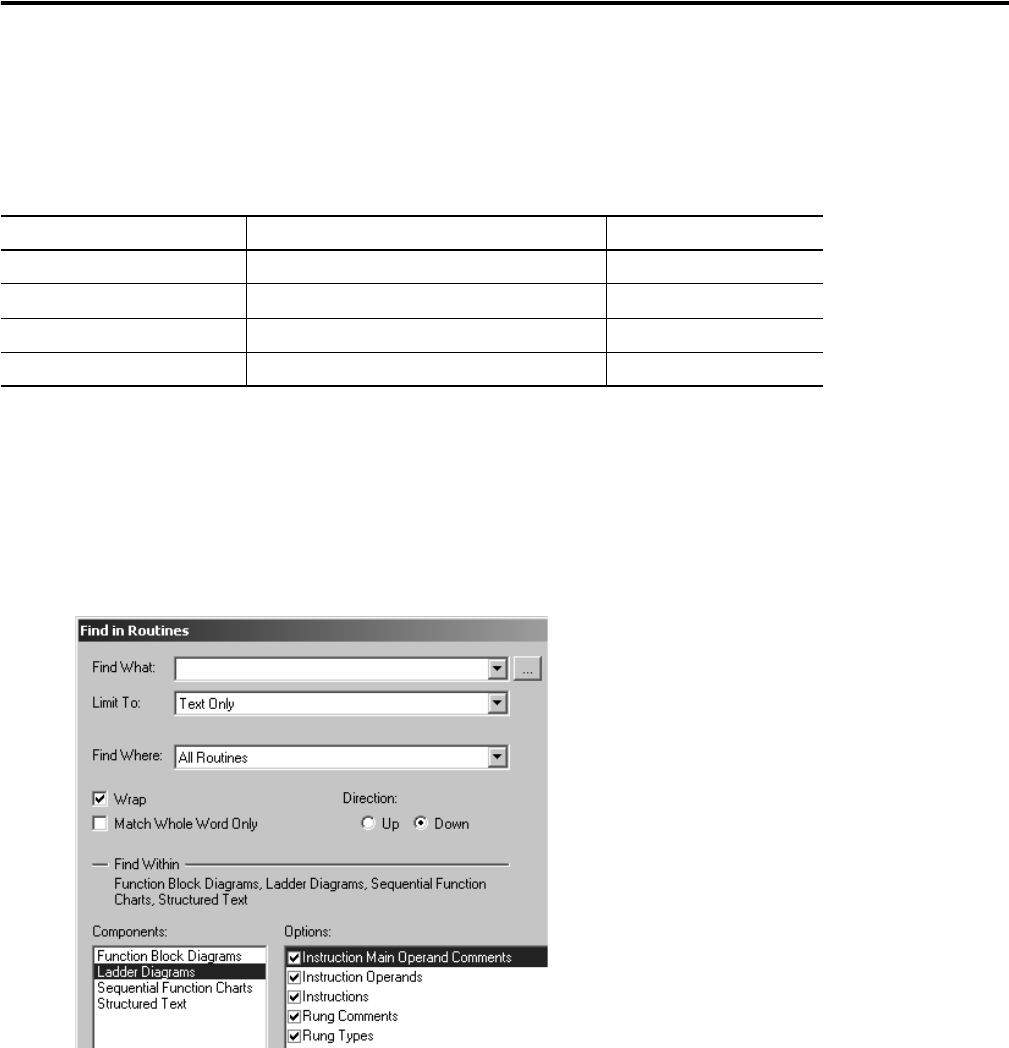

2. From the Search menu, choose Find.
To find a(n) Specify Example
Tag Full or partial tag name MyTag_1
Comment/description Text within the comment/description fan
Instruction Mnemonic of the instruction OTE
Instruction and tag Mnemonic and tag OTE MyTag_1
