Publication 1756-QS001E-EN-P - October 2009 123
Program a Project Online Chapter 8

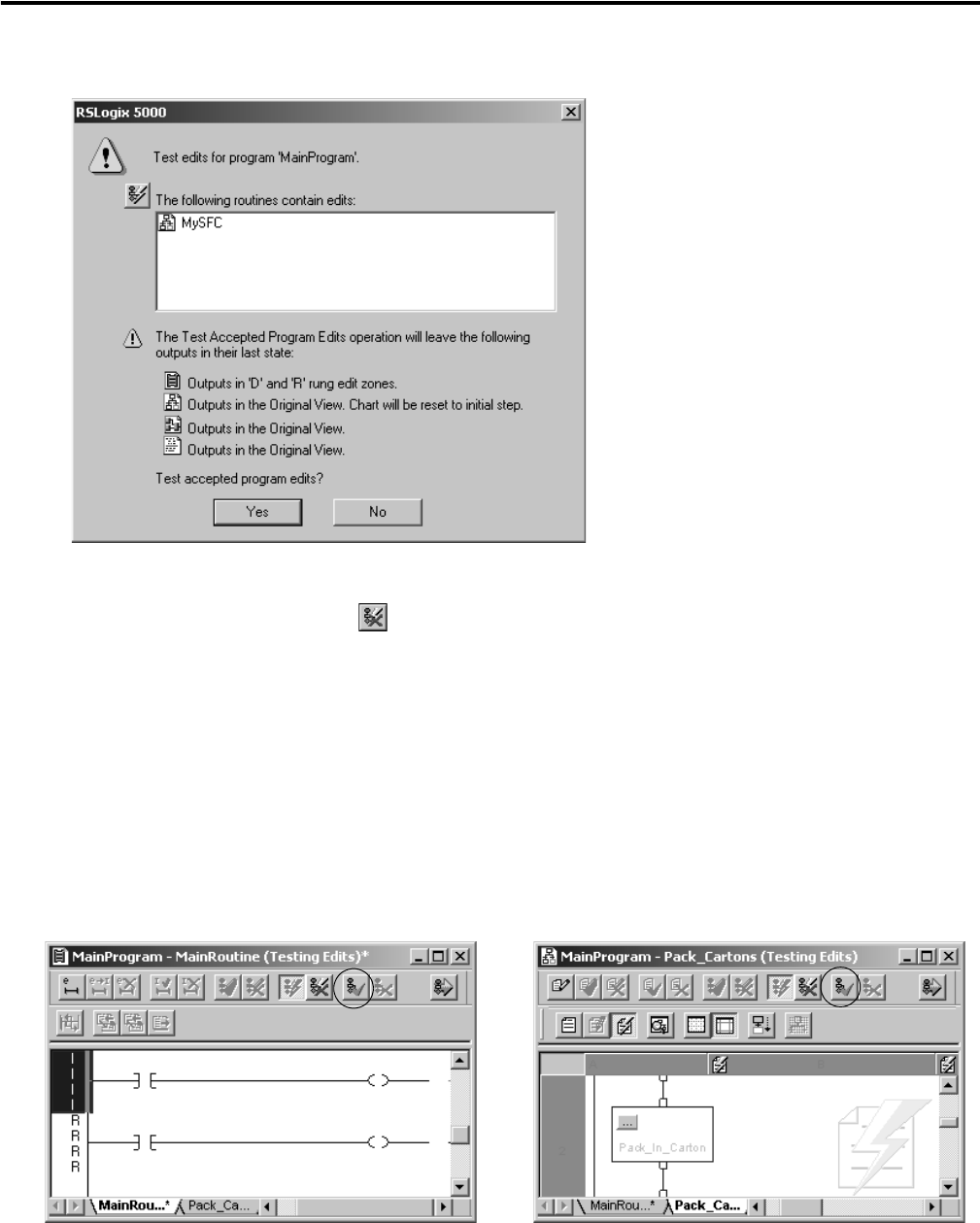

2. Click Yes to test the edits.
3. If the edits are not correct, click to switch execution back to your original logic (untest the edits).
To make changes, start another pending edit.
Assemble and Save the Edits
1. Assemble the edits.
The edits become permanent and the original logic is removed.
2. Save the project.
Relay Ladder
Function Block, Structured Text, SFC
