120 Publication 1756-QS001E-EN-P - October 2009
Chapter 8 Program a Project Online

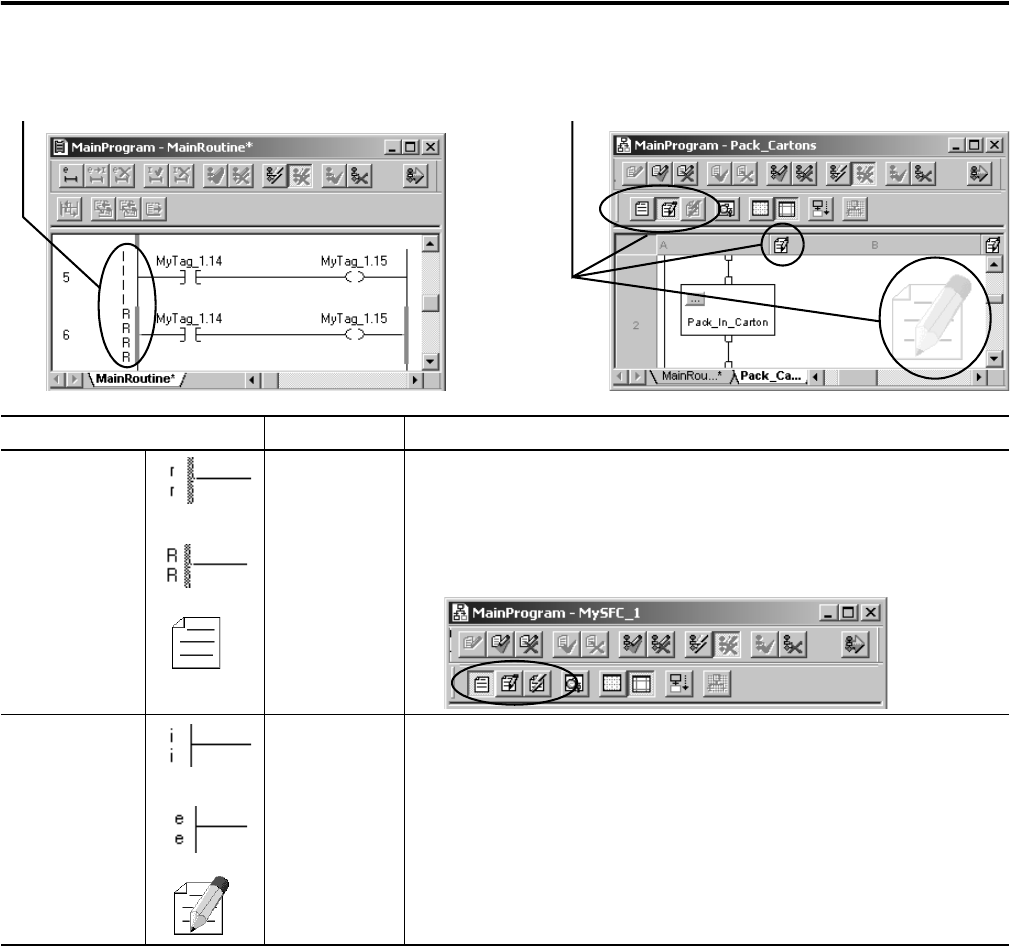

As you perform online edits, RSLogix 5000 software uses markers to show the state of your edits.
This marker Means Description
Relay ladder Original logic When online, RSLogix 5000 software continues to show you the original logic
while you edit a copy of the logic (pending edit). A green border or side rail shows
which logic the controller is currently running.
In function block, structured text, or SFC, use the buttons above the routine to
switch between different views.
Function block
Structured text
SFC
Relay ladder Pending edits This is a copy of the original logic for you to edit. Any changes remain on your
computer until you accept the edits.
• In relay ladder, you edit individual rungs within a routine.
• In function block, structured text, or SFC, you edit an entire routine.
Function block
Structured text
SFC
Relay Ladder Function Block, Structured Text, SFC
- or -
- or -
