Publication 1756-QS001E-EN-P - October 2009 117
Go Online to the Controller Chapter 7
If Your Computer Has the Project For the Controller

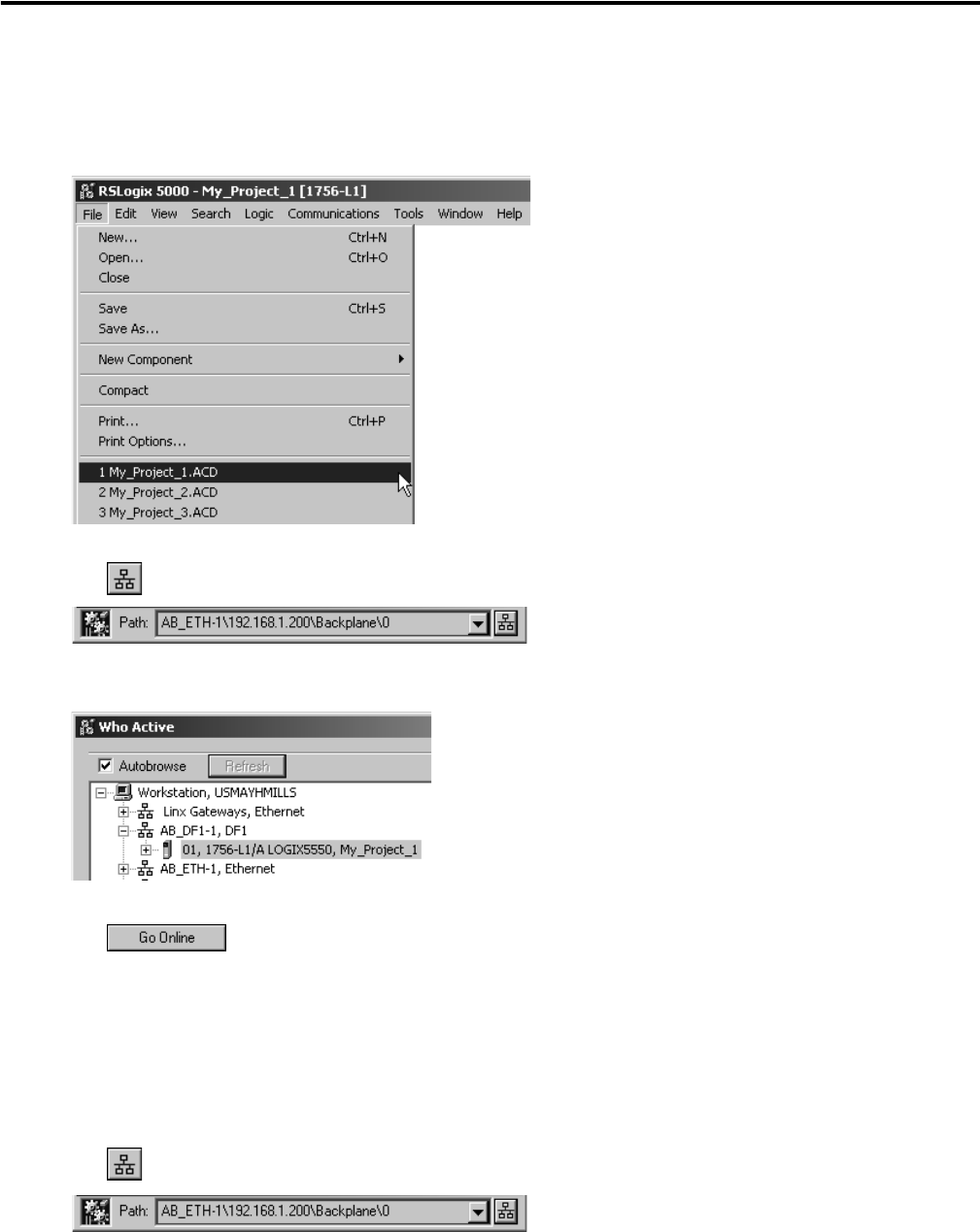

1. Open the RSLogix 5000 project for the controller.
2. Click to define a path to the controller.
3. Select the controller.
4. Click .
If Your Computer Does Not Have the Project For the Controller
1. Open the RSLogix 5000 project for the controller.
2. Click to define a path to the controller.
