Chapter 7 Go Online to the Controller

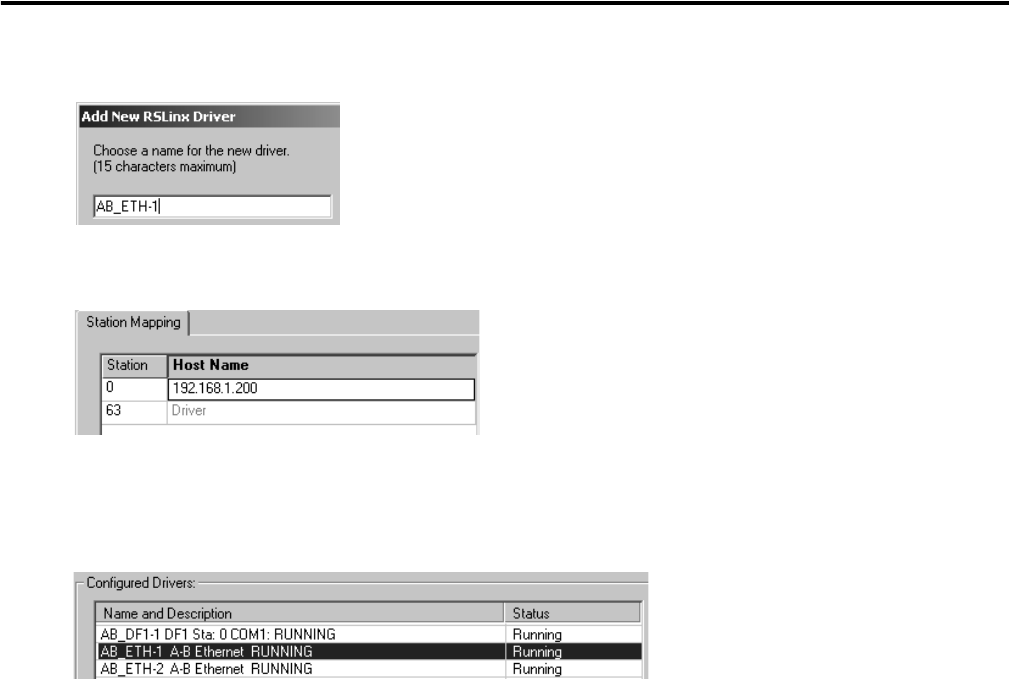

4. Accept the default name.
5. Type the IP address of the controller or communication module.
6. Click OK.
The driver is successfully configured and running.
Online with a Controller
To monitor a project that is executing in a controller, go online with the controller. The procedure that you
use depends on whether you have a copy of the project on your computer.
