Publication 1756-QS001E-EN-P - October 2009 115
Go Online to the Controller Chapter 7

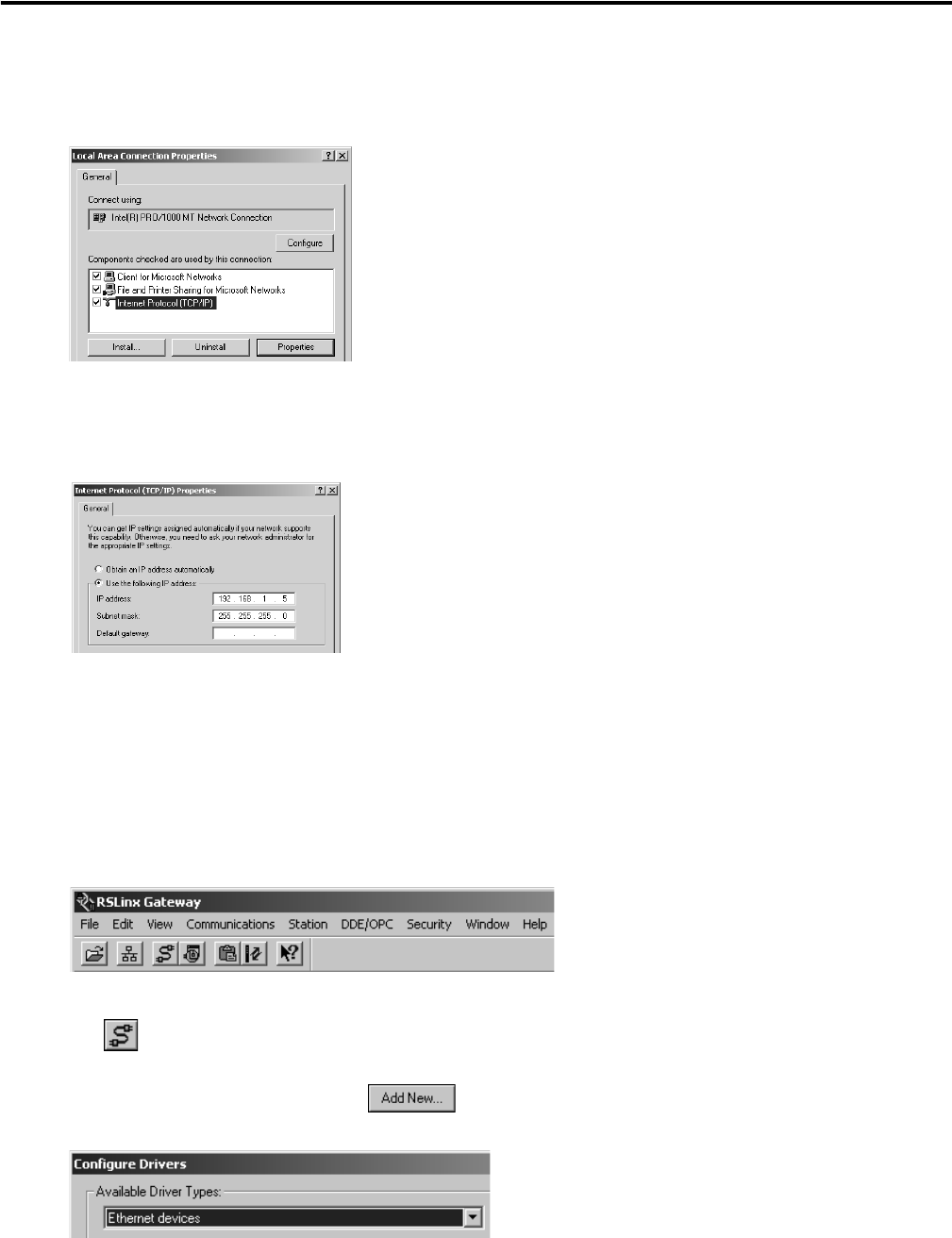

4. Select Internet Protocol (TCP/IP).
5. Choose Properties.
6. Select Use the following IP address.
7. Change the IP address and subnet mask.
8. Click OK.
Configure an Ethernet Driver
1. Start RSLinx software.
2. Click .
3. Select Ethernet devices and choose .
