Publication 1756-QS001E-EN-P - October 2009 113
Go Online to the Controller Chapter 7

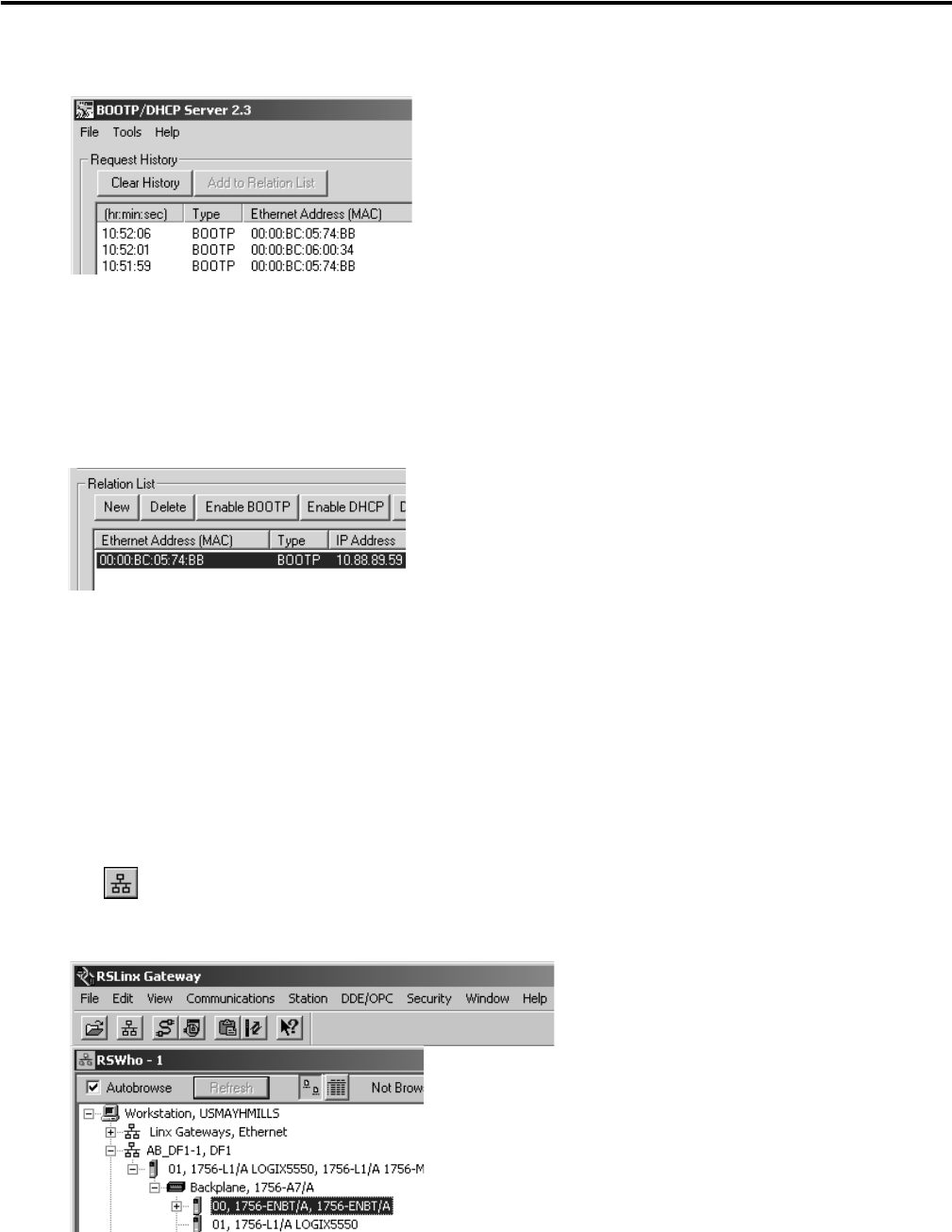

3. Double-click the Ethernet address of the controller/communication module.
4. Type the IP address and click OK.
5. In the Relation List (lower section), select the device and click Disable BOOTP.
This lets the device keep the address even after a power cycle.
6. When you close the BOOTP server software, you are prompted to save your changes.
• If you want a record of the IP address that you assigned to the device, save the changes.
• Regardless of whether you save the changes, the device keeps the IP address.
Follow these steps if you have a serial connection to the controller.
1. Start RSLinx software.
2. Click .
3. Browse to the EtherNet/IP device.
4. Right-click the device and choose Module Configuration.
