106 Publication 1756-QS001E-EN-P - October 2009
Chapter 6 Document a Project

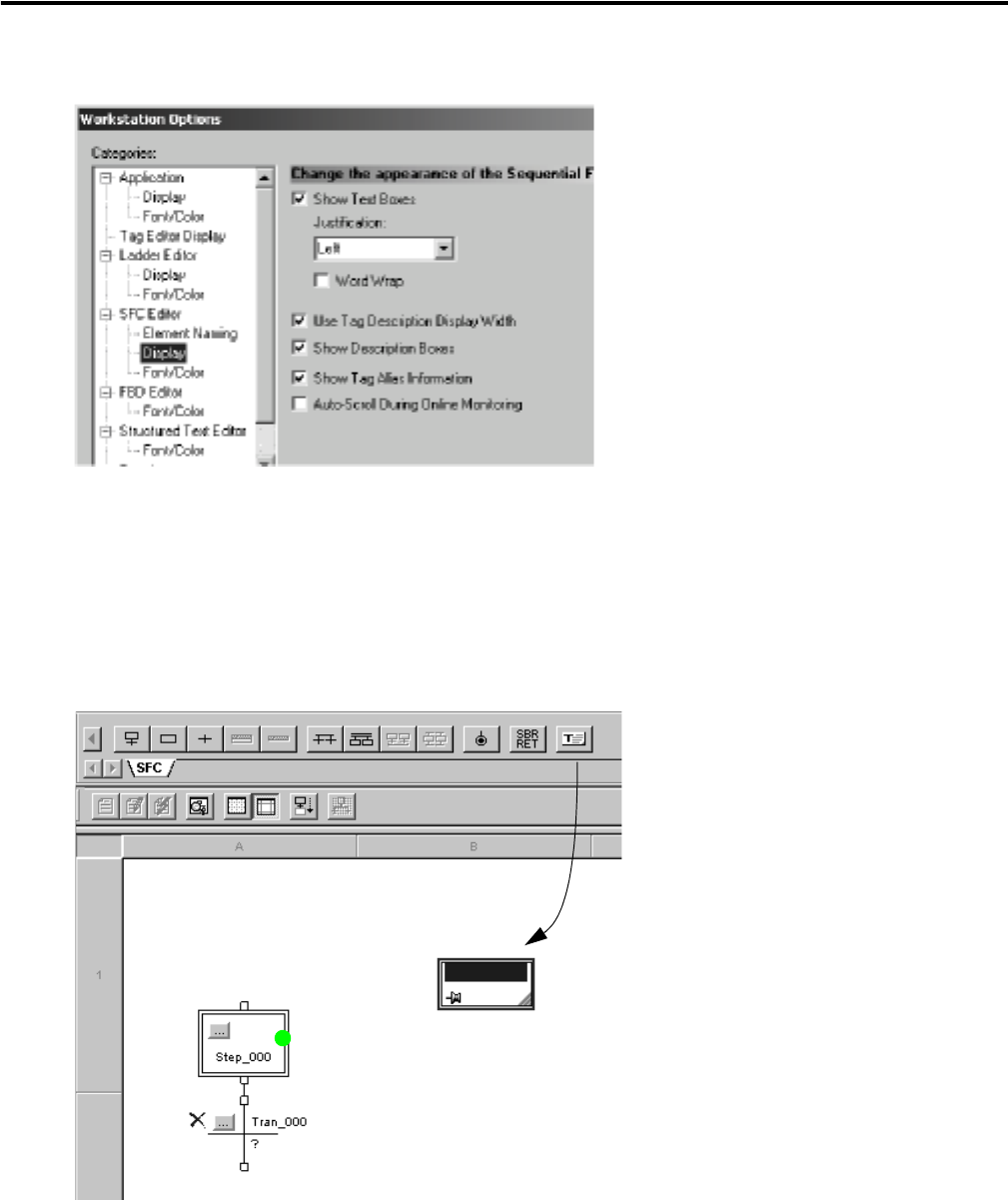

2. Select the editor.
3. Select or clear the word wrap option.
Add a Text Box
1. Drag the text box button from the toolbar to the chart.
2. Type the comment and press Ctrl + Enter.
3. To attach the text box to a specific element, click the pin symbol and then the corresponding element.
A green dot shows a valid connection point.
