Publication 1756-QS001E-EN-P - October 2009 105
Document a Project Chapter 6
Comments in a Function Block Diagram or SFC
Use Text boxes to add notes about the diagram or chart in general or a specific element. Or use a text box to
capture information that you will use later on as you develop the project.

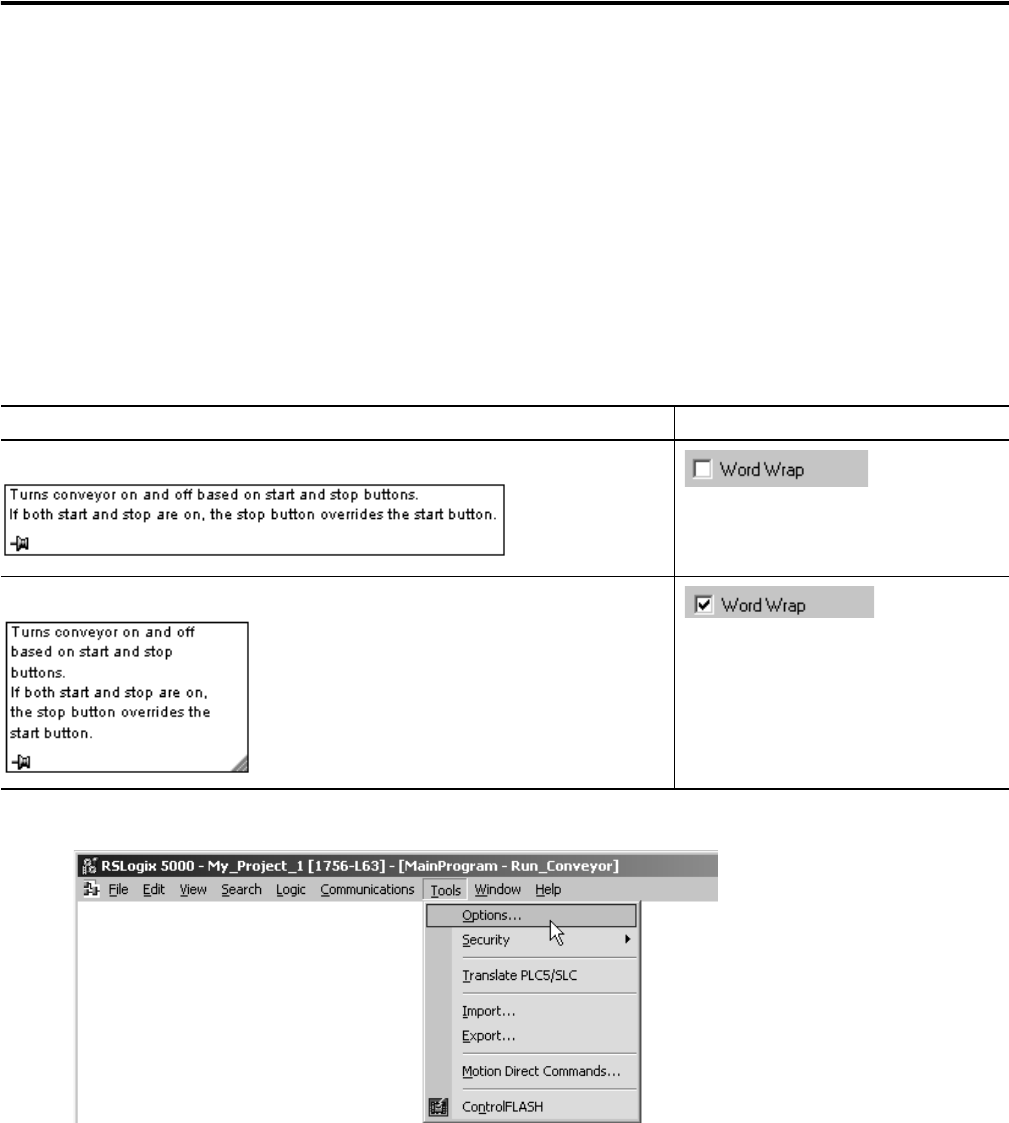

Set the Word Wrap Option
Use the word wrap option to control the width of the text box as you type. You set the option for function
block diagrams and SFC independent of each other.
1. In RSLogix 5000 software, from the Tools menu, choose Options.
If you want text boxes to Choose this option
Automatically grow to the width of the longest line of text in the box.
Retain a fixed width and wrap the text. You can always manually resize the box.
