Document a Project Chapter 6

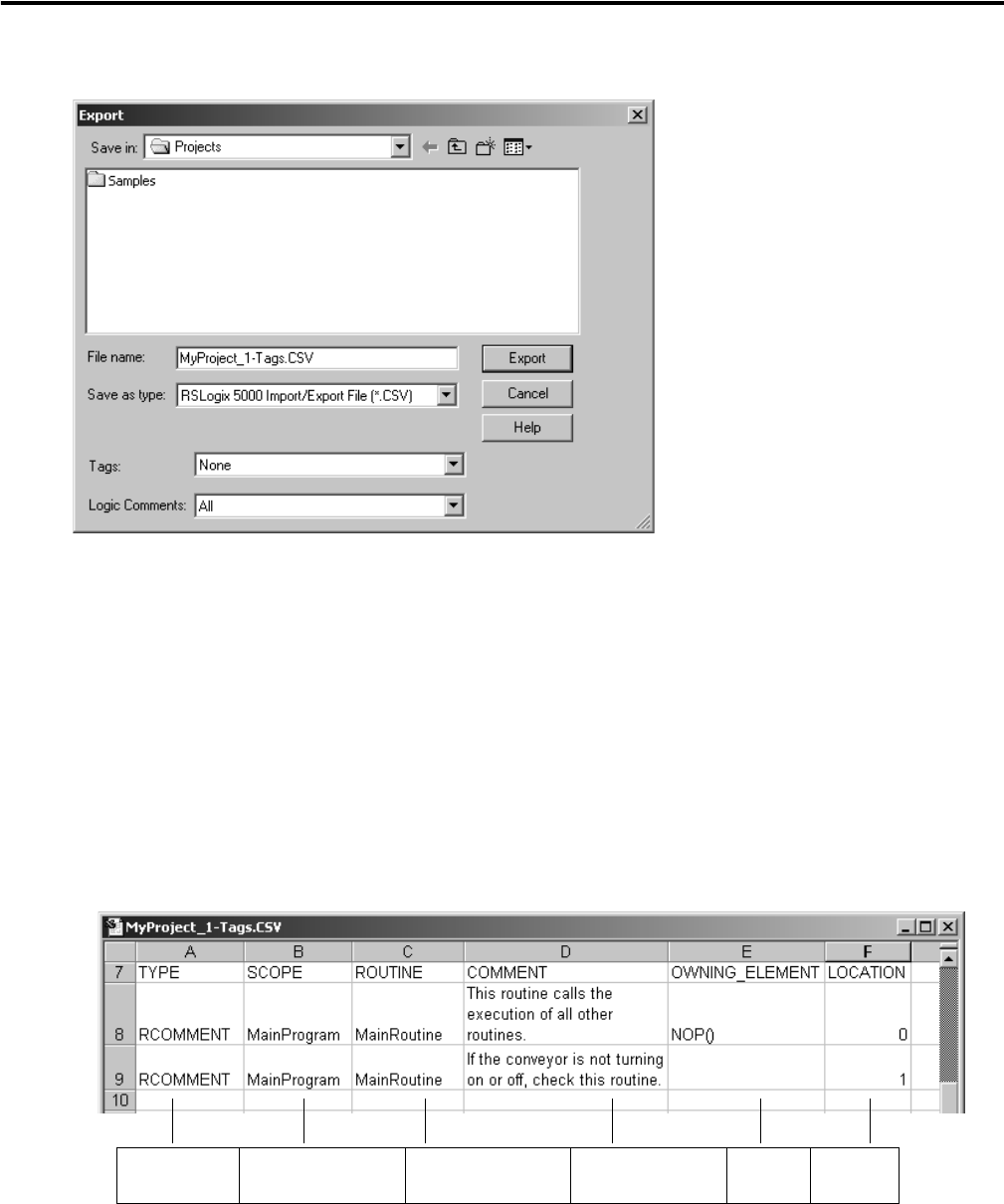

3. Note the location and name of the export file.
4. Choose what to export.
5. Click Export.
Edit the Export File
1. In Microsoft Excel software, open the export file.
2. Enter rung comments.
4. Save and close the file (keep it in the CSV format).
RCOMMENT program that
contains the rung
routine that contains
the rung
comments for the
rung
leave
blank
rung
number
