Organize tags Chapter 2

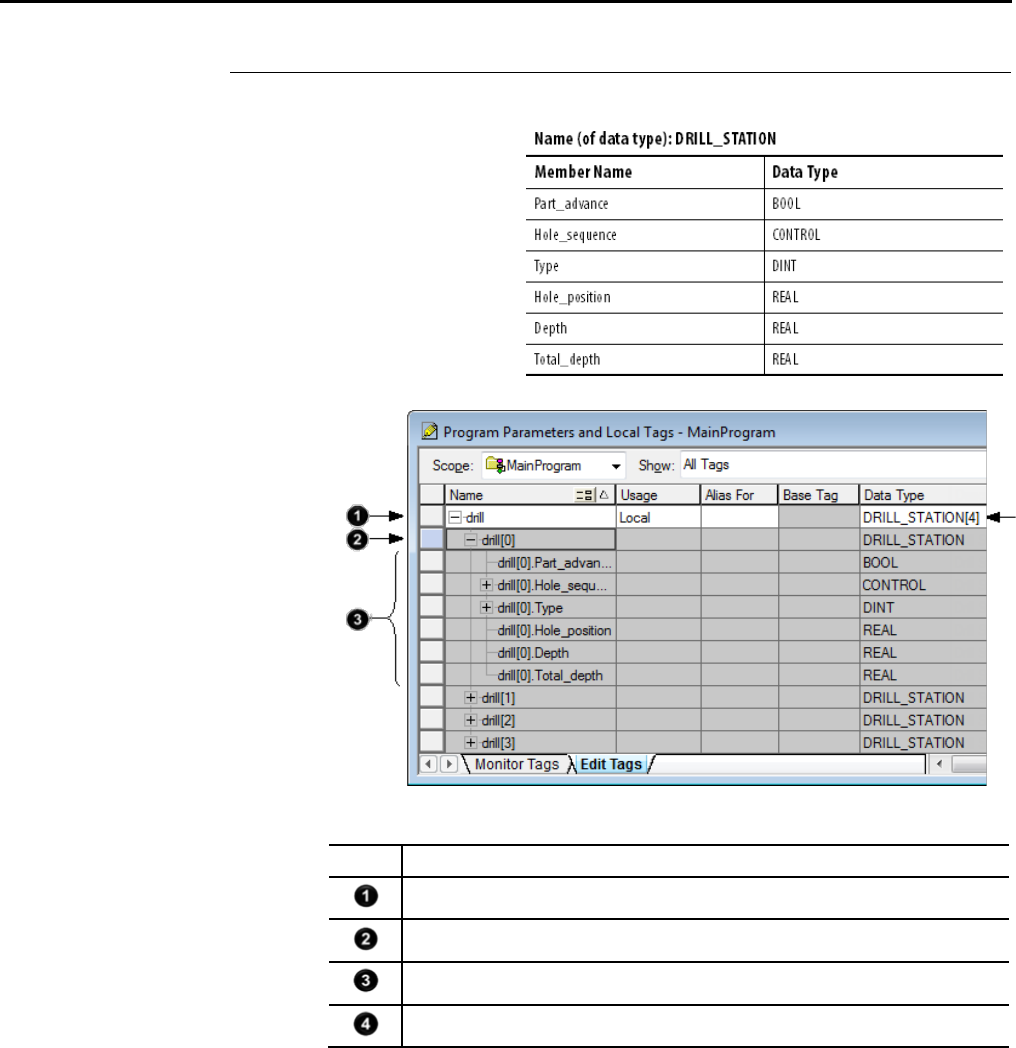

Example: User-defined data type that stores the data that is required to run a machine.
Because several drill stations require the following mix of data, use a user-defined data type.
An array that is based on this data type would look like this example.
Item Description
Array of drills
First drill
Data for the drill
Array containing four elements of the DRILL_STATION data type
Rock well Automati on Publication 1756- PM004E -EN-P - October 2014 39
