Rockwell Automation Publication D2-3518-3 - May 2013 83

Chapter 9

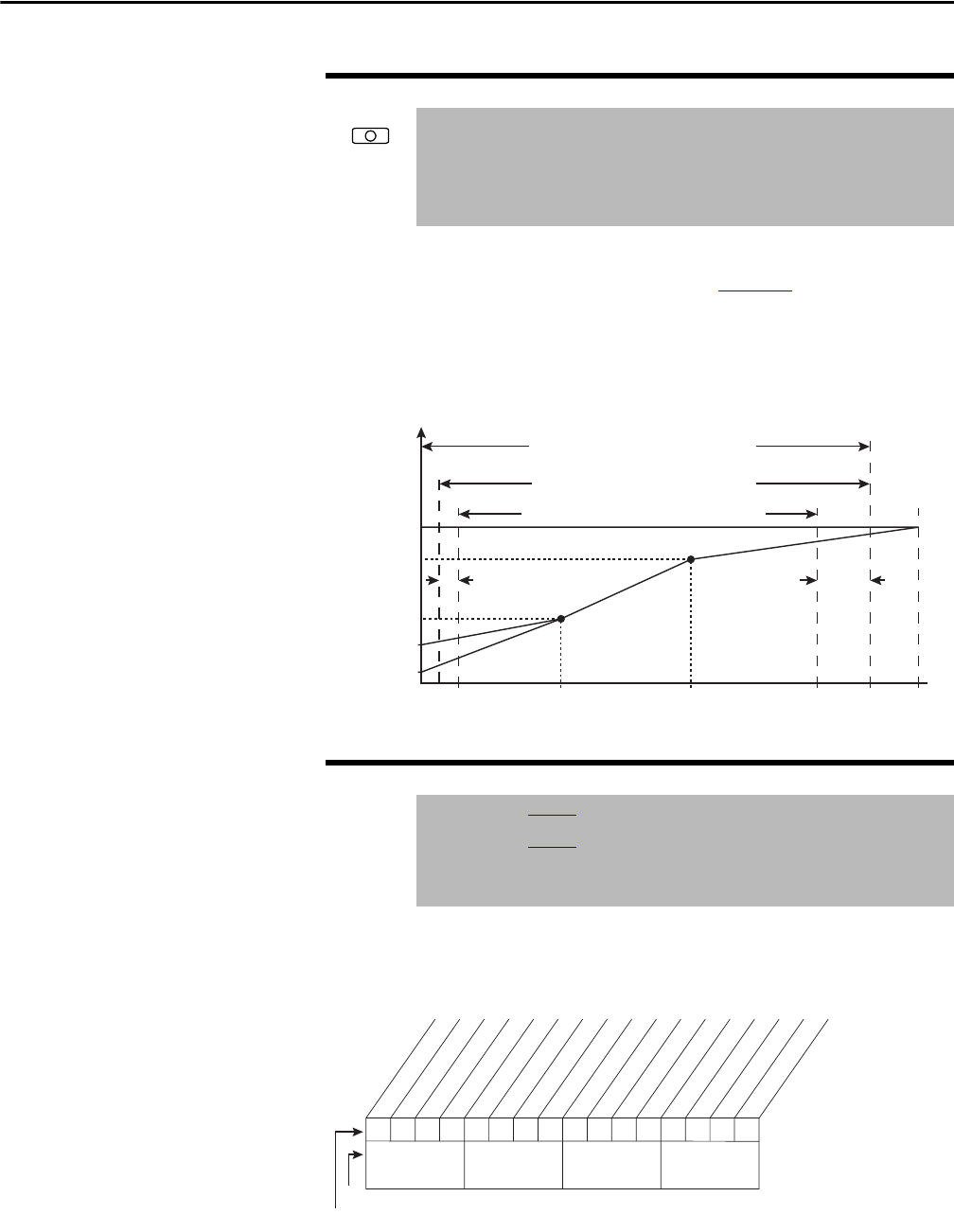

Sets the maximum allowable frequency the drive will output. Note that this is not

maximum speed, which is set in parameter 82. See Figure 36

See description of rectifier Max Motor Freq parameter (108 in rectifiers

parameters).

Figure 36 - Speed Limits

Enables/disables the compensation correction options.

Figure 37 - Compensation (56)

55 Maximum Freq

Range: 5.0...250.0 Hz [0.1 Hz]

Default: 130.0 Hz

Access: 0 Path: Motor Control > Torq Attributes
