260 Rockwell Automation Publication D2-3518-3 - May 2013

Appendix D

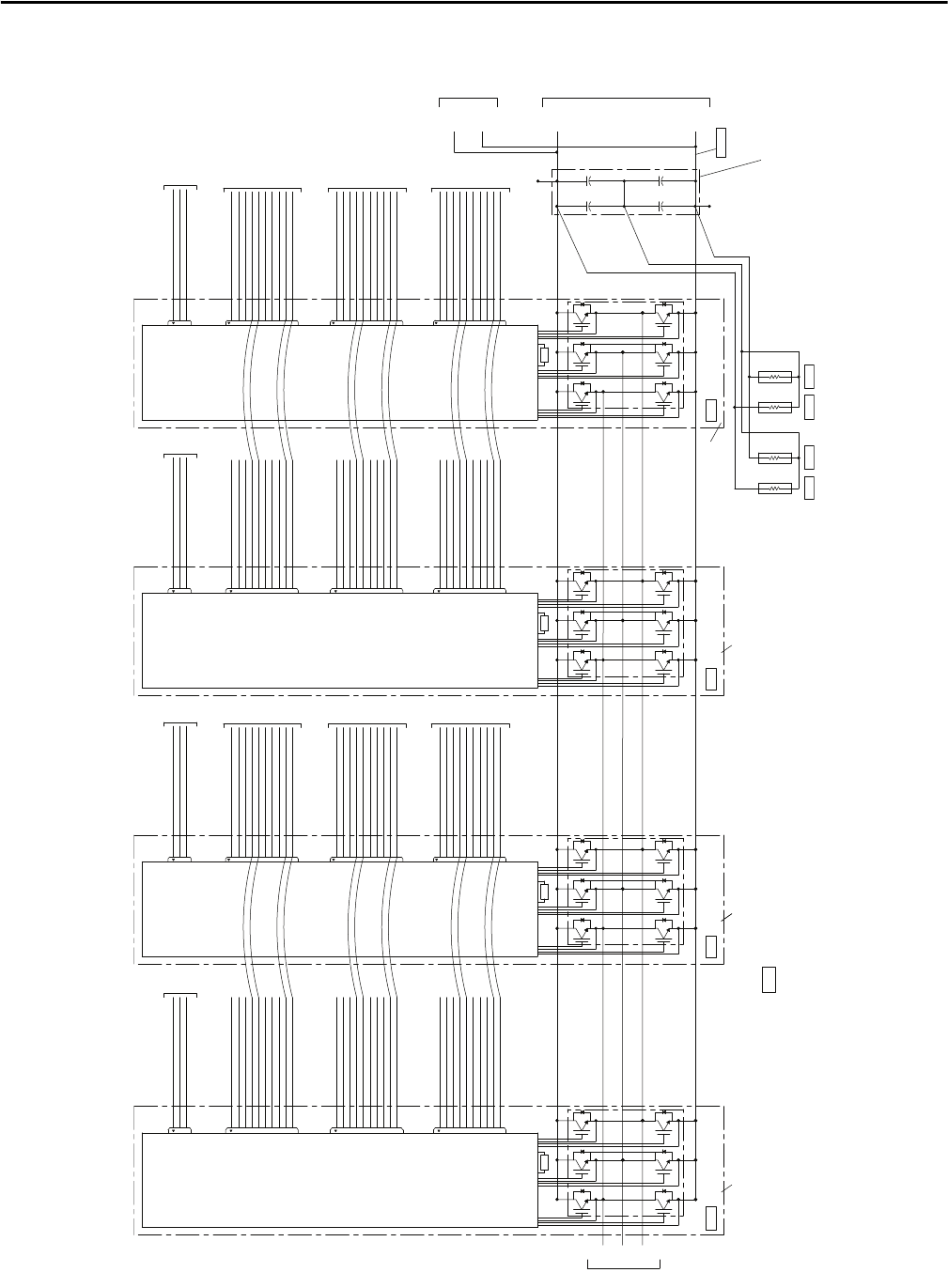

Figure 113 - Power Module Rectifier IGBT Wiring Diagram (Frame 4 - sheet 4)

RECTIFIER #4 L3+ GATE

RECTIFIER #4 L3+ EMITTER

RECTIFIER #4 L3- GATE

RECTIFIER #4 L3- EMITTER

RECTIFIER #3 L3+ COLLECTOR

RECTIFIER #3 L3+ GATE

RECTIFIER #3 L3+ EMITTER

RECTIFIER #3 L3- COLLECTOR

RECTIFIER #3 L3- GATE

RECTIFIER #3 L3- EMITTER

RECTIFIER #2 L3+ GATE

RECTIFIER #2 L3+ EMITTER

RECTIFIER #2 L3- GATE

RECTIFIER #2 L3- EMITTER

RECTIFIER #1 L3+ GATE

RECTIFIER #1 L3+ EMITTER

RECTIFIER #1 L3- GATE

RECTIFIER #1 L3- EMITTER

BOTTOM IGBT

RECTIFIER IGBT ASSY #1

2A151

RECTIFIER #1 L1+ GATE

RECTIFIER #1 L1+ EMITTER

RECTIFIER #1 L1- GATE

RECTIFIER #1 L1- EMITTER

SEE

SHE ET

BUS

RTD

RECTIFIER #1 L2+ GATE

RECTIFIER #1 L2+ EMITTER

RECTIFIER #1 L2- GATE

RECTIFIER #1 L2- EMITTER

SEE

SHEET

SEE

SHEET

SEE

SHEET

RECTIFIER IGBT ASSY #3

AFD POWER MODULE WIRING DIAGRAM

RECTIFIER IGBT ASSY #2

2A2

2A152

LOWER IGBT

2A153

UPPER IGBT

RECTIFIER IGBT ASSY #4

DISCHARGE RESISTORS,

2600 OHMS

2A154

TOP IGBT

DC-

MEASUREMENT

POINT

RECTIFIER #3 L1+ COLLECTOR

RECTIFIER #3 L1+ GATE

RECTIFIER #3 L1+ EMITTER

RECTIFIER #3 L1- COLLECTOR

RECTIFIER #3 L1- GATE

RECTIFIER #3 L1- EMITTER

RECTIFIER #3 L2+ COLLECTOR

RECTIFIER #3 L2+ GATE

RECTIFIER #3 L2+ EMITTER

RECTIFIER #3 L2- COLLECTOR

RECTIFIER #3 L2- GATE

RECTIFIER #3 L2- EMITTER

RECTIFIER #2 L1+ GATE

RECTIFIER #2 L1+ EMITTER

RECTIFIER #2 L1- GATE

RECTIFIER #2 L1- EMITTER

SEE

SHEET

RTD

RECTIFIER #2 L2+ GATE

RECTIFIER #2 L2+ EMITTER

RECTIFIER #2 L2- GATE

RECTIFIER #2 L2- EMITTER

SEE

SHEET

SEE

SHEET

RECTIFIER #4 L1+ GATE

RECTIFIER #4 L1+ EMITTER

RECTIFIER #4 L1- GATE

RECTIFIER #4 L1- EMITTER

...

RTD

DC+

MEASUREMENT

POINT

RECTIFIER #4 L2+ GATE

RECTIFIER #4 L2+ EMITTER

RECTIFIER #4 L2- GATE

RECTIFIER #4 L2- EMITTER

BUS CAPACITOR,

2700 uF, 420 VDC

SEE TABLE ON

SHEET 1 FOR

QUANTITY

LAMINATED DC BUS

2A2-LAM

DC-

BUS

SEE

SHEET

SEE

SHE

DC+

BUS

DC-

BUS

DC+

BUS

SEE

SHEET

J1 J1 J1

RECTIFIER IGBT #1 RTD+

RECTIFIER IGBT #1 RTD-

RECTIFIER IGBT #2 RTD+

RECTIFIER IGBT #2 RTD-

SEE

SHEET

RECTIFIER IGBT #3 RTD+

RECTIFIER IGBT #3 RTD-

SEE

SHEET

RECTIFIER IGBT #4 RTD+

RECTIFIER IGBT #4 RTD-

SEE

SHEET

2A2-R1 2A2-R2

2A3-R3

2A4-R4

180015-2

Sheet 4
