Chapter 10
Device Version
To access the device version information for the current device (inverter, rectifier,
or DPI peripheral device), see Figure 86
and Figure 87. This example assumes
that the OIM is currently set to view the inverter device, indicated by
P0: LiquiFlo 2.0 on the OIM display. If the OIM is currently viewing the
rectifier device, the OIM display contains the line P2: Active Rectifier.

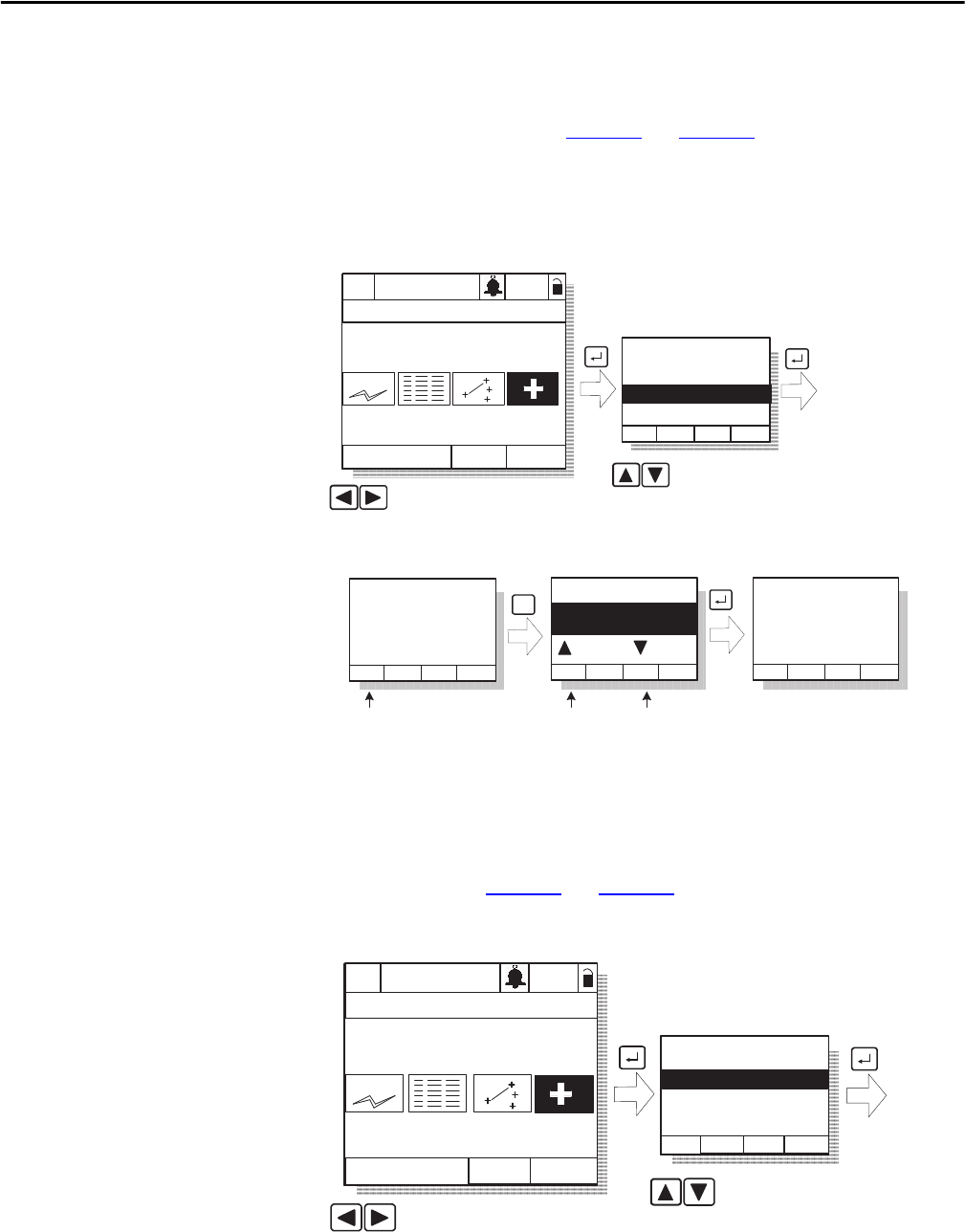

Figure 86 - Accessing the Device Version Information
Figure 87 - Device Version Screens at Product and Component Levels
OIM Version
The OIM Version selection provides information on the OIM you are using to
access this data. See Figure 88
and Figure 89.
Figure 88 - Accessing the OIM Version Information
Diagnostics
:
OIM Version
View Fault Queue
Monitor Lang
P0: LiquiFlo 2.0
Stopped Auto
Main Menu
Diagnostics
Device Version
Highlight Diagnostics icon
Highlight item
See
figure
below
>>
Diag: Product Ver
Date: mm/dd/yyyy
FW Ver: x.xxx
Series: X
Cmp
F1
F1
Diag: Dev Comp
Prev
Main Control
Board
Prdt
Next
Flash
To Component
Level
To Product
Level
F1 F3
Flash F/W
Information
Diag: Comp Ver
FW Ver: x.xxx
HW Ver: xxx
Diagnostics
:
Status Info
OIM Version
Monitor
Lang
P0: LiquiFlo 2.0
Stopped Auto
Main Menu
Diagnostics
Fault Info
Highlight Diagnostics icon
Highlight item
See
figure
below
>>
