Chapter 9
Selects the mode for the user-configurable analog output.
See AC Line I/O Board Description (Frame 3 Only)
on page 25 through
Combined I/O Board Description (Frame 4 Only)
on page 29 for a description
of I/O hardware that is present on this drive and is controlled by the inverter.

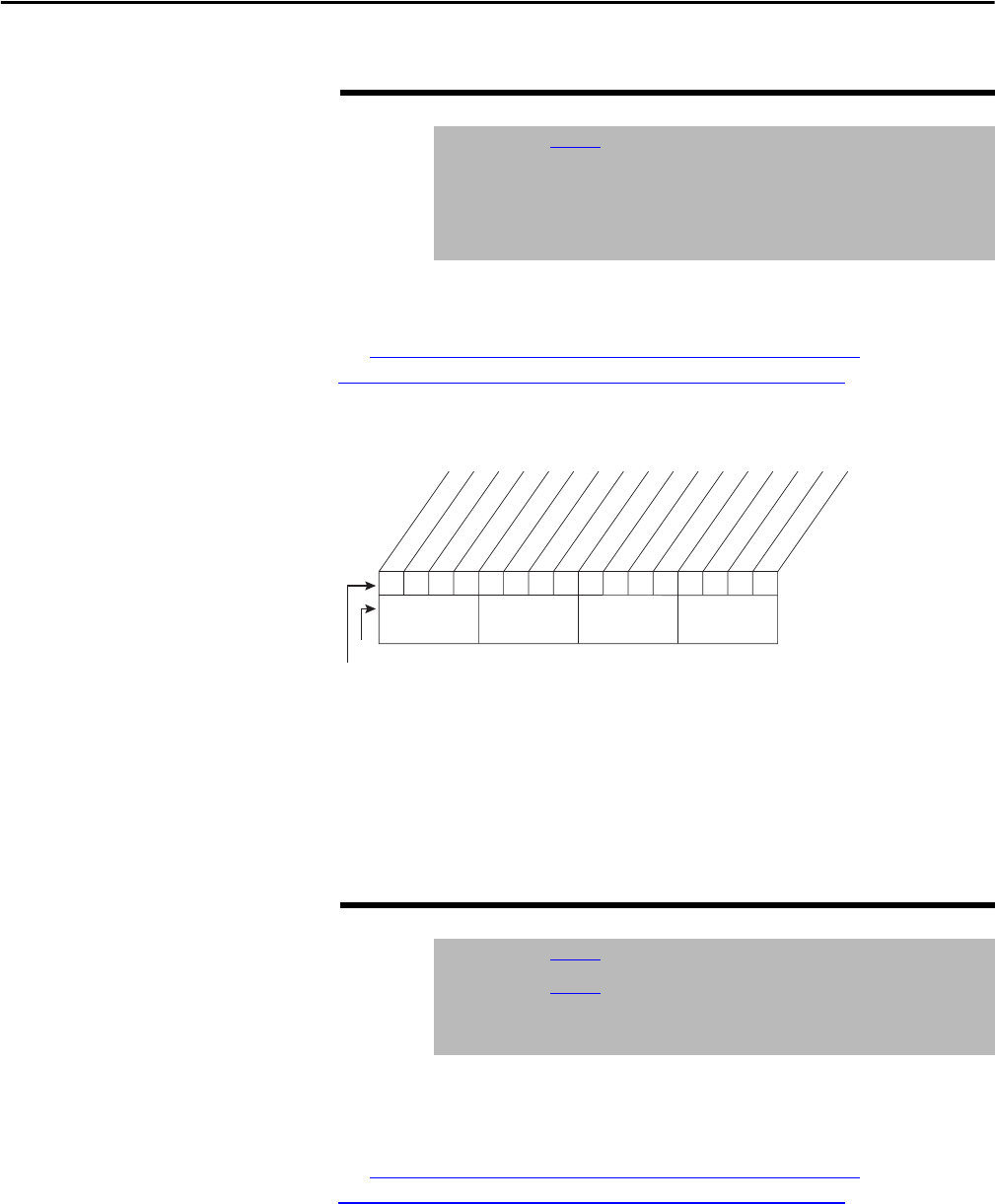

Figure 66 - Anlg Out Config (340)
For Frame 4 drives only (firmware versions 2.x), the actual mode of the user-
configurable analog output depends on the value of this parameter and on the
capabilities of the analog output hardware on the Combined I/O board. The
units (V or mA) displayed for the Analog Out Hi and Analog Out Lo
parameters are an accurate indication of the actual mode of the analog output.
Selects whether the signed value or absolute value of a parameter is used before
being scaled to drive the user-configurable analog output.
See AC Line I/O Board Description (Frame 3 Only)
on page 25 through
Combined I/O Board Description (Frame 4 Only)
on page 29 for a description
of I/O hardware that is present on this drive and is controlled by the inverter.
340 Anlg Out Config
Range: See Figure 66
Default: 1
Access: 1 Path: Inputs & Outputs > Analog Outputs
See also:
341 Anlg Out Absolut
Range: See Figure 67
Default: See Figure 67
Access: 1 Path: Inputs & Outputs > Analog Outputs
See also: 342
x
xx 1xxxxxxxxxxxx
0011234567891112131415
1=Current
0=Voltage
x =Reserved
Bit #
Factory Default Bit Values
Analog Out
Nibble 1Nibble 2Nibble 3Nibble 4
