136 Rockwell Automation Publication D2-3518-3 - May 2013
Chapter 9
Controls which modules are allowed to take exclusive control of drive logic
commands (except stop). Exclusive local control can be taken only when the drive
is stopped.
Modules that are presently issuing a valid stop command.

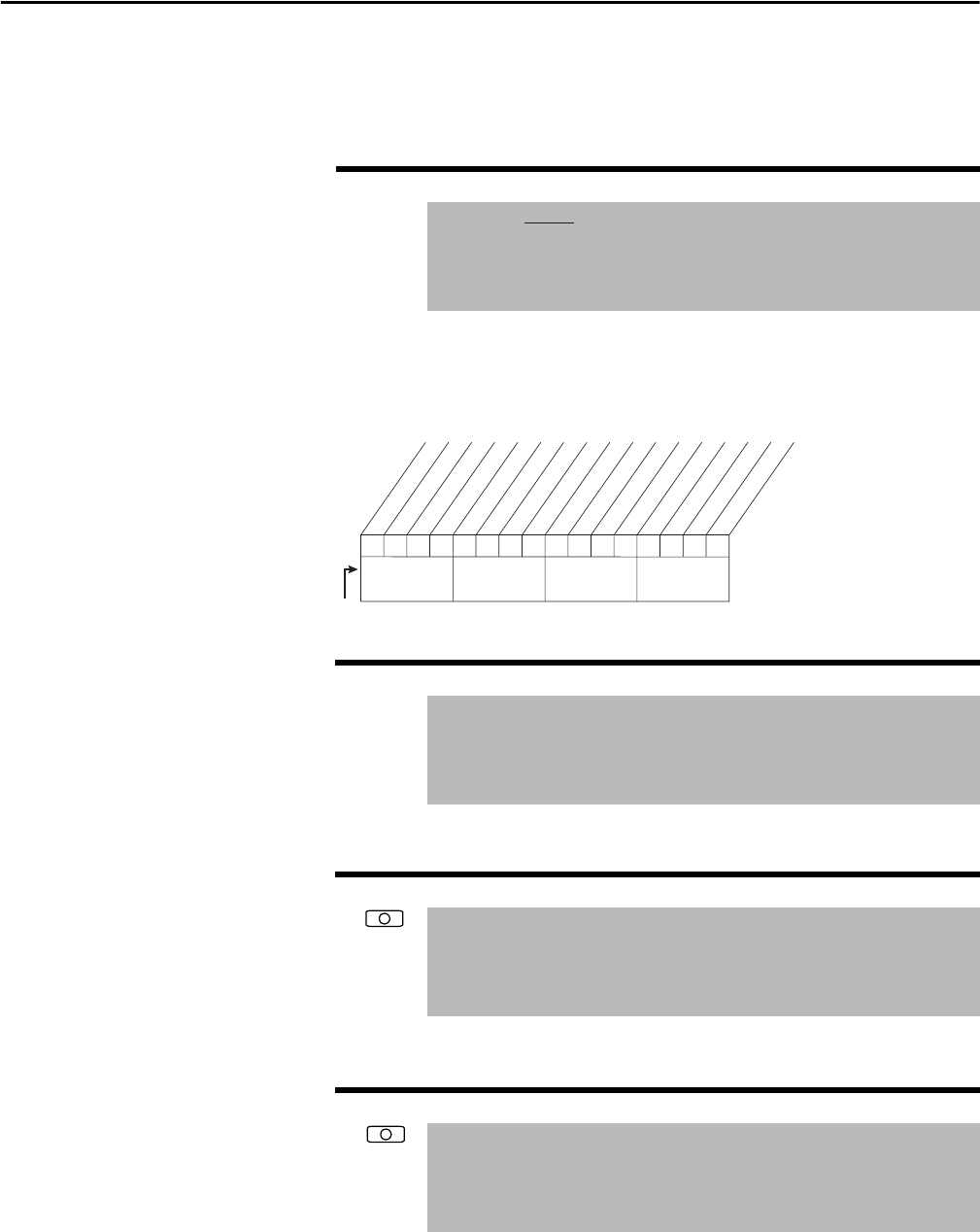

Figure 63 - Stop Owner
Modules that are presently issuing a valid start command.
Modules that are presently issuing a valid jog command.
Adapter that currently has exclusive control of direction changes.
288 Stop Owner
Range: See Figure 63
Default: Read Only
Access: 1 Path: Communication > Masks & Owners
See also: 276...285
289 Start Owner
Range: See Stop Owner (288)
Default: Read Only
Access: 1 Path: Communication > Masks & Owners
See also: 276...285
290 Jog Owner
Range: See Stop Owner (288)
Default: Read Only
Access: 1 Path: Communication > Masks & Owners
See also: 276...285
291 Direction Owner
Range: See Stop Owner (288)
Default: Read Only
Access: 1 Path: Communication > Masks & Owners
See also: 276...285
0000000xxxxxxxxx
0011234567891112131415
1=Issuing Command
0=No Command
x =Reserved
Bit #
Digital In
DPI Port 1
DPI Port 2
DPI Port 3
DPI Port 4
DPI Port 5
DPI Port 6 (F4 only)
Nibble 1Nibble 2Nibble 3Nibble 4
