134 Rockwell Automation Publication D2-3518-3 - May 2013
Chapter 9
Controls which modules can issue start commands.
Controls which modules can issue jog commands.

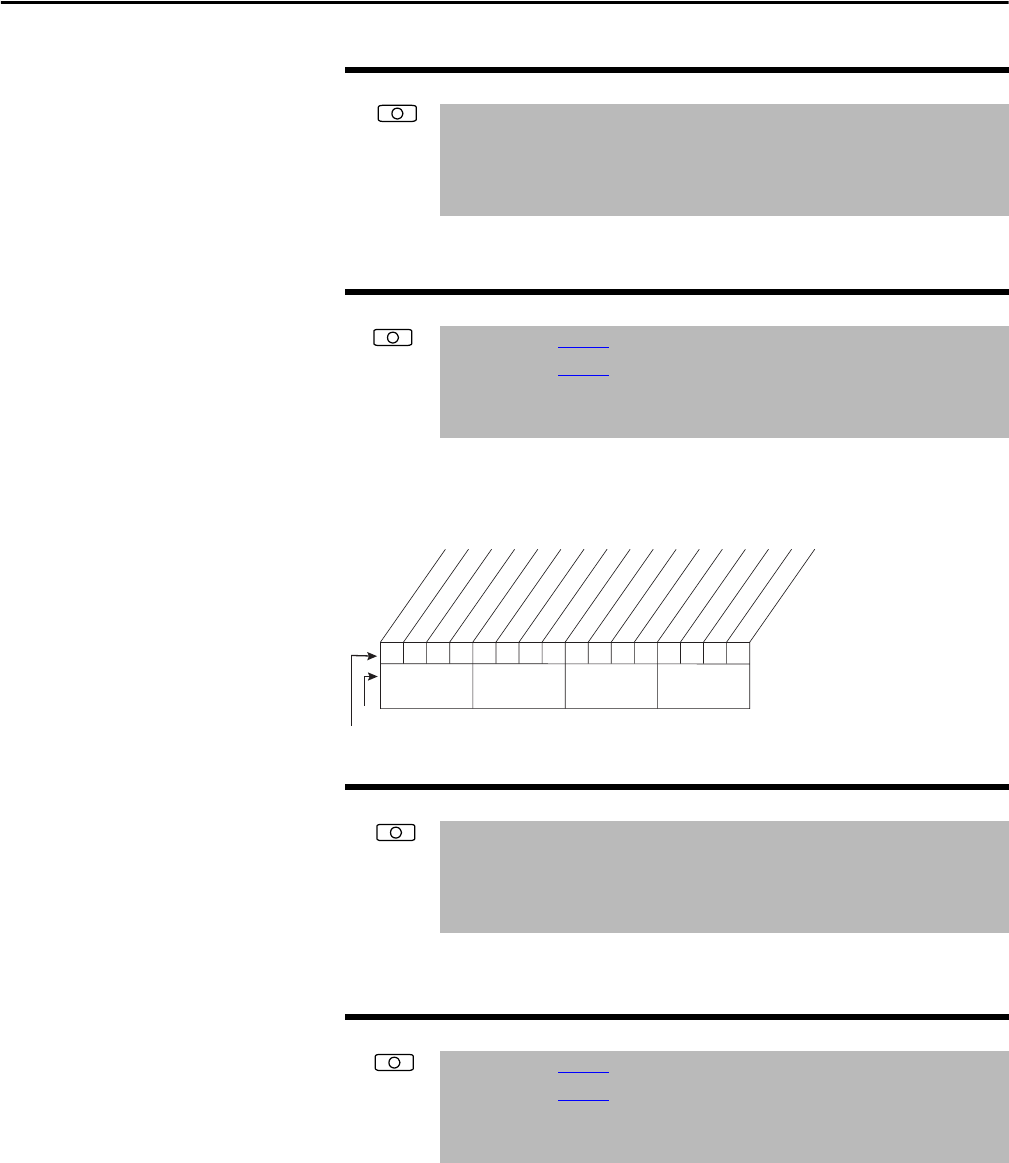

Figure 61 - Jog Mask (278)
Controls which modules can issue forward/reverse direction commands.
Controls which modules can select an alternate reference. Speed Ref A, B Sel or
Preset 1 - 7 (90, 93, 101...107).
277 Start Mask
Range: See Logic Mask (276)
Default: See Logic Mask (276)
Access: 1 Path: Communication > Masks & Owners
See also: 288...297
278 Jog Mask
Range: See Figure 61
Default: See Figure 61
Access: 1 Path: Communication > Masks & Owners
See also: 288...297
279 Direction Mask
Range: See Jog Mask (278)
Default: See Jog Mask (278)
Access: 1 Path: Communication > Masks & Owners
See also: 288...297
280 Reference Mask
Range: See Figure 62
Default: See Figure 62
Access: 1 Path: Communication > Masks & Owners
See also: 288...297
000000xxxxxxxxxx
0011234567891112131415
1=Control Enabled
0=Control Disabled
x =Reserved
Bit #
Digital In
DPI Port 1
DPI Port 2
DPI Port 3
DPI Port 4
DPI Port 5
Nibble 1Nibble 2Nibble 3Nibble 4
Factory Default Bit Values
