Present frequency reference scaled as a DPI reference for peer-to-peer
communications. The value shown is the output prior to the accel/decel ramp
and any corrections supplied by slip comp, PI, etc.
Present frequency reference scaled as a DPI reference for peer-to-peer
communications. The value shown is the value after the accel/decel ramp but
prior to any corrections supplied by slip comp, PI, etc.
Enables and disables control of the drive by particular DPI devices or the digital
inputs.

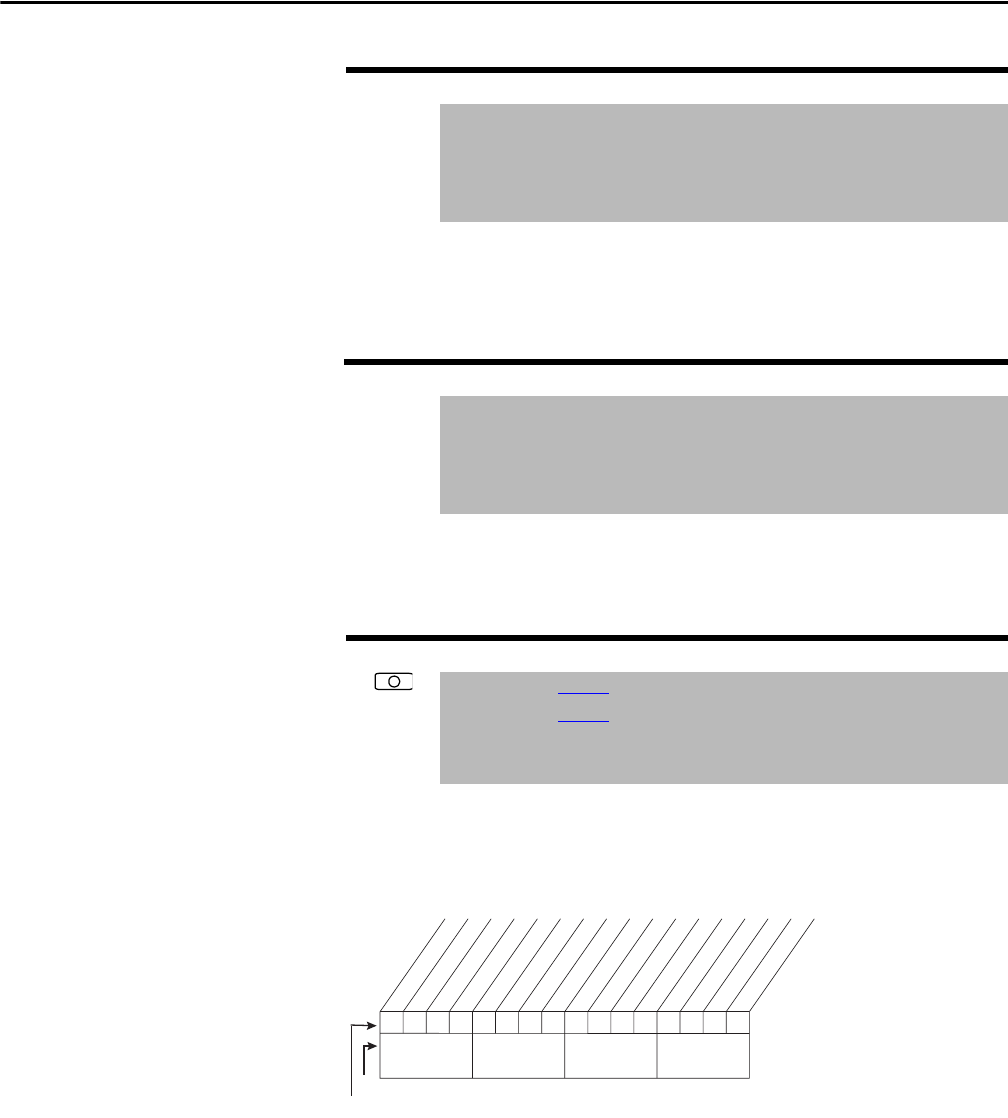

Figure 60 - Logic Mask (276)
272 Drive Ref Rslt
Range: -/+32767 [1]
Default: Read Only
Access: 1 Path: Communication > Comm Control
See also:
273 Drive Ramp Rslt
Range: -/+32767 [1]
Default: Read Only
Access: 1 Path: Communication > Comm Control
See also:
276 Logic Mask
Range: See Figure 60
Default: See Figure 60
Access: 1 Path: Communication > Masks & Owners
See also: 288...297
100000xxxxxxxxxx
0011234567891112131415
1=Control Enabled
0=Control Disabled
x =Reserved
Bit #
Digital In
DPI Port 1
DPI Port 2
DPI Port 3
DPI Port 4
DPI Port 5
Nibble 1Nibble 2Nibble 3Nibble 4
Factory Default Bit Values
