124 Rockwell Automation Publication D2-3518-3 - May 2013

Chapter 9

This parameter contains the current state of digital outputs controlled by the

inverter. See AC Line I/O Board Description (Frame 3 Only)

on page 25

through Combined I/O Board Description (Frame 4 Only)

on page 29 for a

description of I/O hardware that is present on this drive and is controlled by the

inverter.

Frame 3 drives (firmware version 1.x) only:

Current state of the user-configurable digital outputs. These outputs are located

on the optional Standard I/O board, which is not present in all drives.

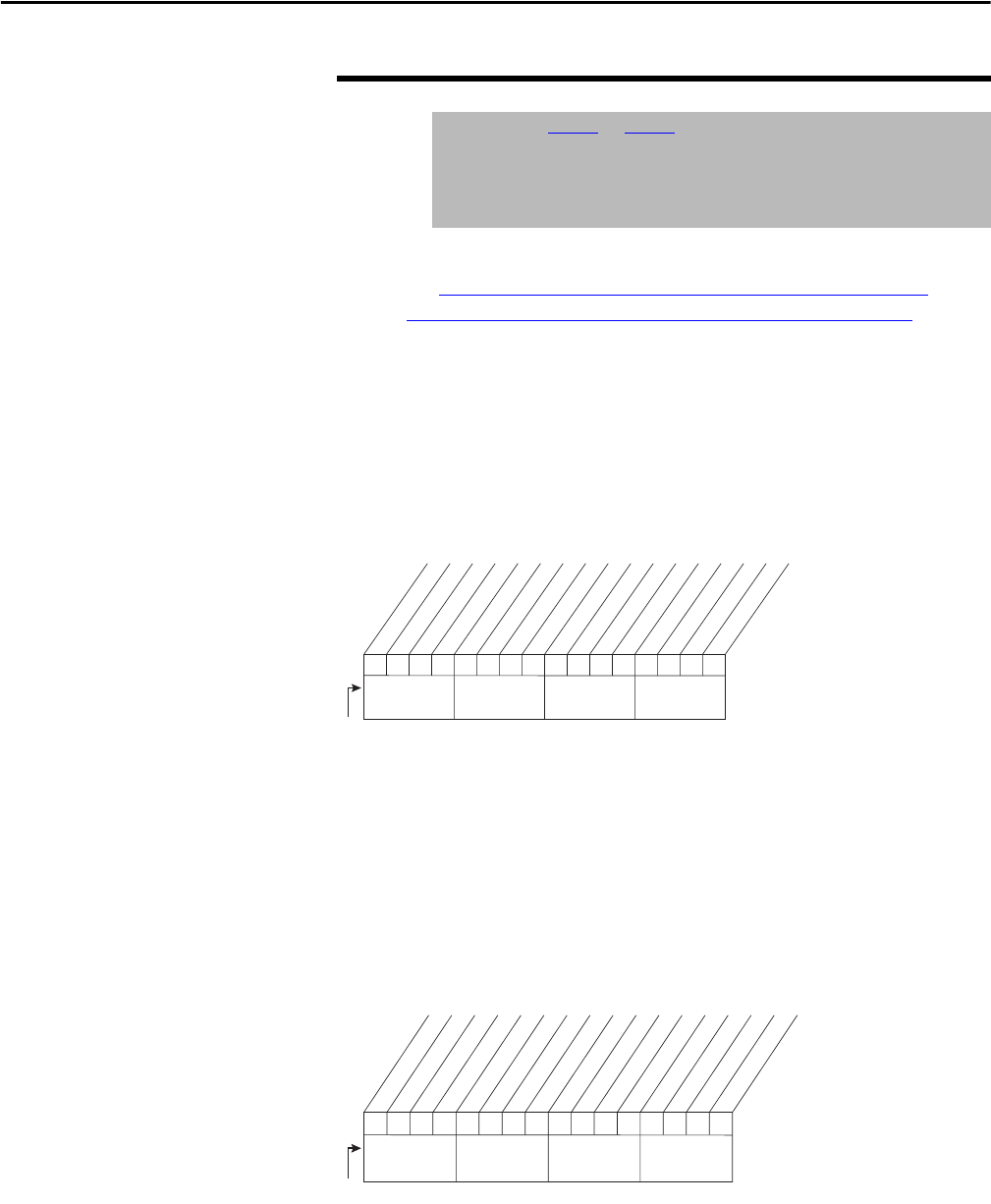

Figure 51 - Dig Out Status (276) Frame 3

Frame 4 drives (firmware version 2.x) only:

Current state of the inverter-controlled digital outputs.

Digital outputs 1 and 2 are the user-configurable digital outputs. Digital Outputs

3...8 are the application controlled digital outputs. All of these digital outputs are

located on the Combined I/O board.

Figure 52 - Dig Out Status (276) Frame 4

217 Dig Out Status

Range: See Figure 51 and Figure 52

Default: Read Only

Access: 0 Path: Utility > Diagnostics
