120 Rockwell Automation Publication D2-3518-3 - May 2013
Chapter 9
Present operating condition of the drive.

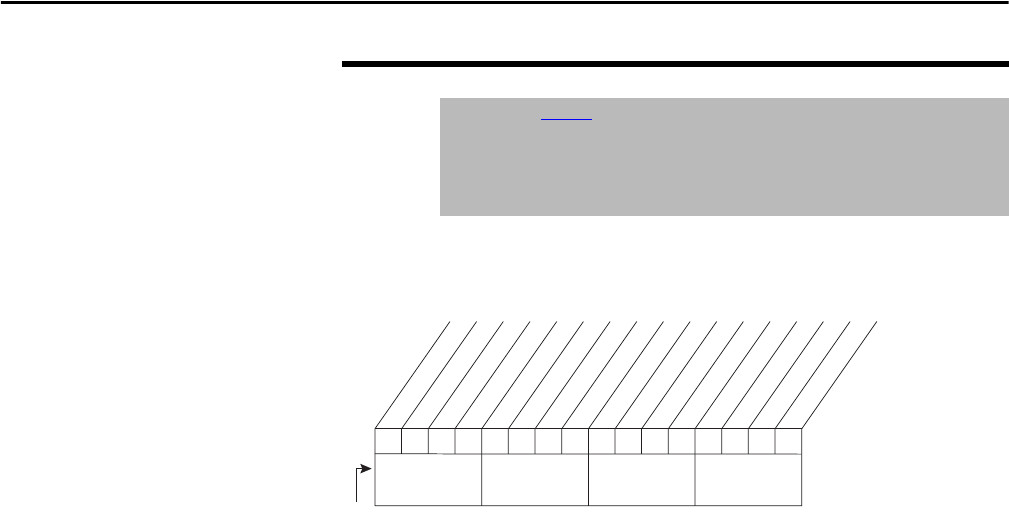

Figure 46 - Drive Status 2 (210)
210 Drive Status 2
Range: See Figure 46
Default: Read Only
Access: 1 Path: Utility > Diagnostics
See also: 209
Bit 0 - Ready = No start inhibits are active.
Bit 1 - Active = Drive is generating output voltage to the motor.
Bit 2 - Running = Drive is generating output voltage to the motor,
run has been selected.
Bit 8 - AutoRst Ctdn = Auto Restart Countdown. See parameter 174.
Bit 9 - AutoRst Ac = Auto Restart Active. See parameter 174.
Bit 11 - Bus Freq Reg = Drive is regulating bus frequency.
0110000x011101xx
0011234567891112131415
1=Condition True
0=Condition False
x =Reserved
Bit #
Ready
Active
Running
Jogging
Stopping
DC Braking
AutoTuning
AutoRst Ctdn
AutoRst Act
Curr Limit
Bus Freq Reg
Motor Overld
DPI at 500 k
Nibble 1Nibble 2Nibble 3Nibble 4
