52 Rockwell Automation Publication LDC-UM001B-EN-P - March 2011
Chapter 6 Configure and Start Up the LDC-Series Linear Motor
9. Click OK to set the values.
10. Click the Conversion tab.

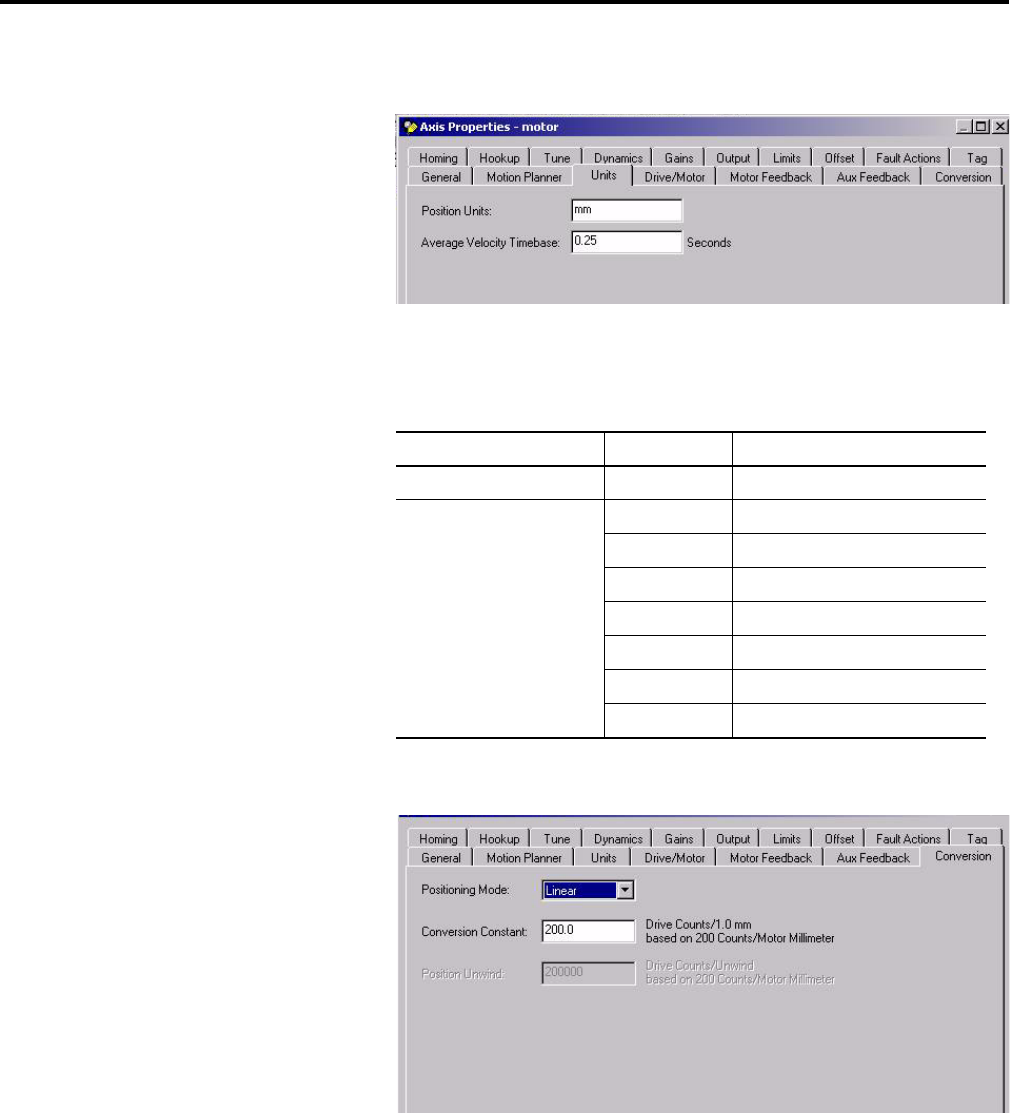

11. Using the screen image as a reference, configure the parameters as shown in
the Setting column.
12. Click OK.
Parameter Setting Comment
Positioning Mode Linear –
Conversion Constant 200 5 µm encoder
500 2 µm encoder
1000 1 µm encoder
2000 0.5 µm encoder
10,0000 0.1 µm encoder
51200 20 µm pitch Sin/Cos encoder
25600 40 µm pitch Sin/Cos encoder
