Rockwell Automation Publication LDC-UM001B-EN-P - March 2011 49
Configure and Start Up the LDC-Series Linear Motor Chapter 6

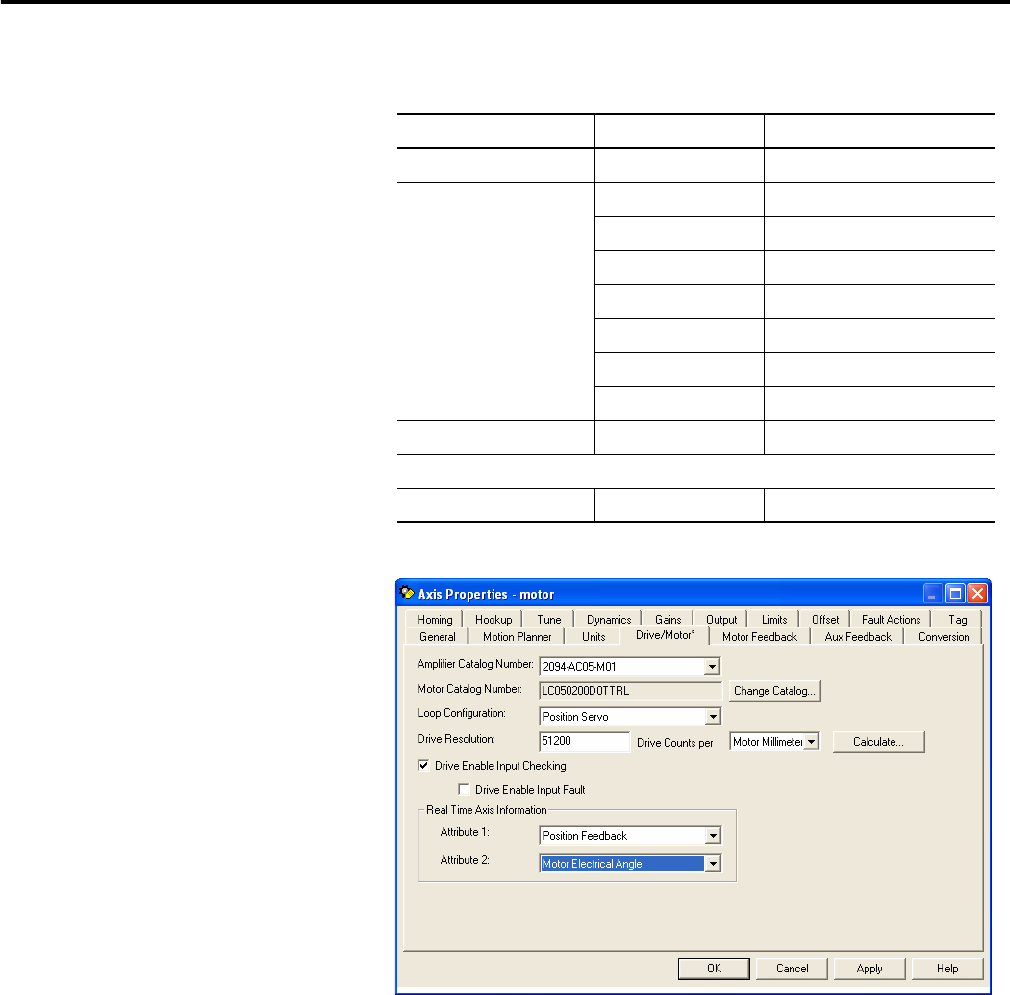

Using the screen image as a reference, configure the parameters as shown in
the Setting column.
3. Click OK.
4. Click the Motor Feedback tab.
Parameter Setting Comment
Loop Configuration Position Servo –
Drive Resolution
200 5 µm encoder
500 2 µm encoder
1000 1 µm encoder
2000 0.5 µm encoder
10,000 0.1 µm encoder
51200 20 µm pitch Sin/Cos encoder
25600 40 µm pitch Sin/Cos encoder
Drive Counts per Motor Millimeter –
Real Time Axis Information
Attribute 1 Position Feedback –
