Rockwell Automation Publication LDC-UM001B-EN-P - March 2011 43
Wire the LDC-Series Linear Motor Chapter 5
Cables Exit in the Center
If mounting coils in tandem, such that the power cables exit in the center as
shown, use the following table to find the mounting distance and the phase
wiring.

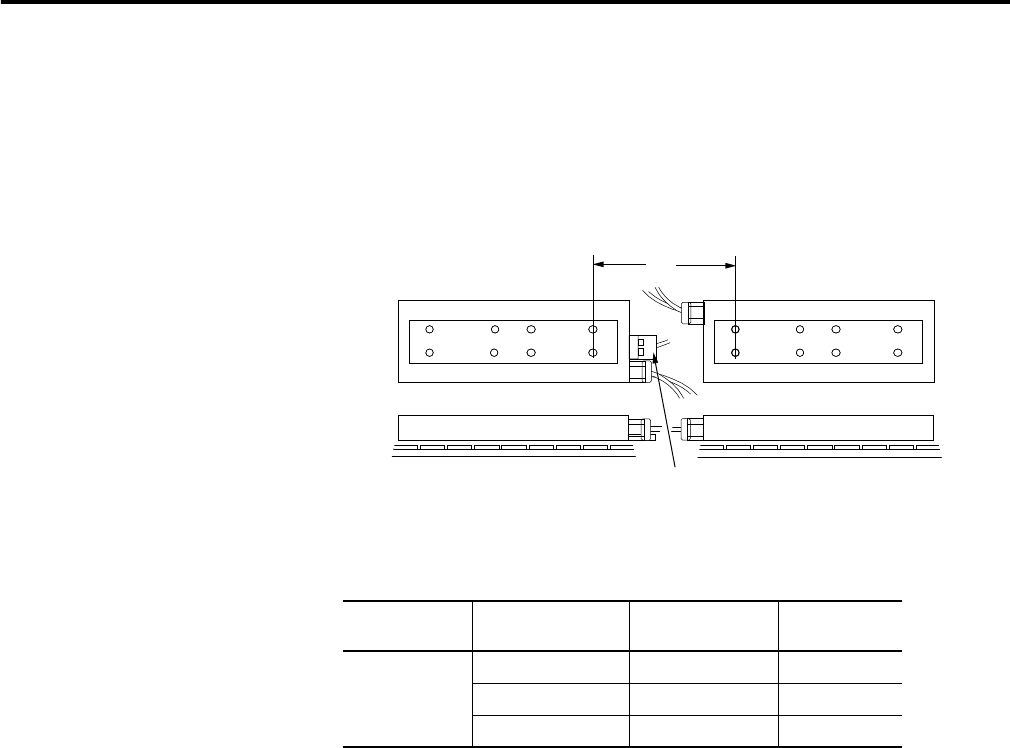

Figure 4 - Mounting Two Coils with Cables Exit in the Center
Coil #1
Coil #2
Coil #1 is the master.
Hall Effect
Module
L
Table 6 - Phase Wiring for Center-exit Power Cables
L
mm (in.)
Coil # 1
Master
(1)
Coil # 2
Slave
(2)
Amplifier
Phase
133.33 (5.249) Red Black U
White White V
Black Red W
(1) Master has Hall effect module.
(2) Slave has no Hall effect module.
