GV3000/SE AC Drive ControlNet Network Communication Option Board
Step 13. The configured node (“GV3000” in this example) now appears under the 1756-CNB
module in the I/O Configuration folder.
Step 14. Repeat the previous steps for each additional node you need to configure.
Step 15. In the Data Types folder, click on the Module-Defined sub-folder. When you
create a module, module-defined data types and tags are automatically
created. These tags allow you to access the Input and Output Data of the
module via the controllers ladder logic.

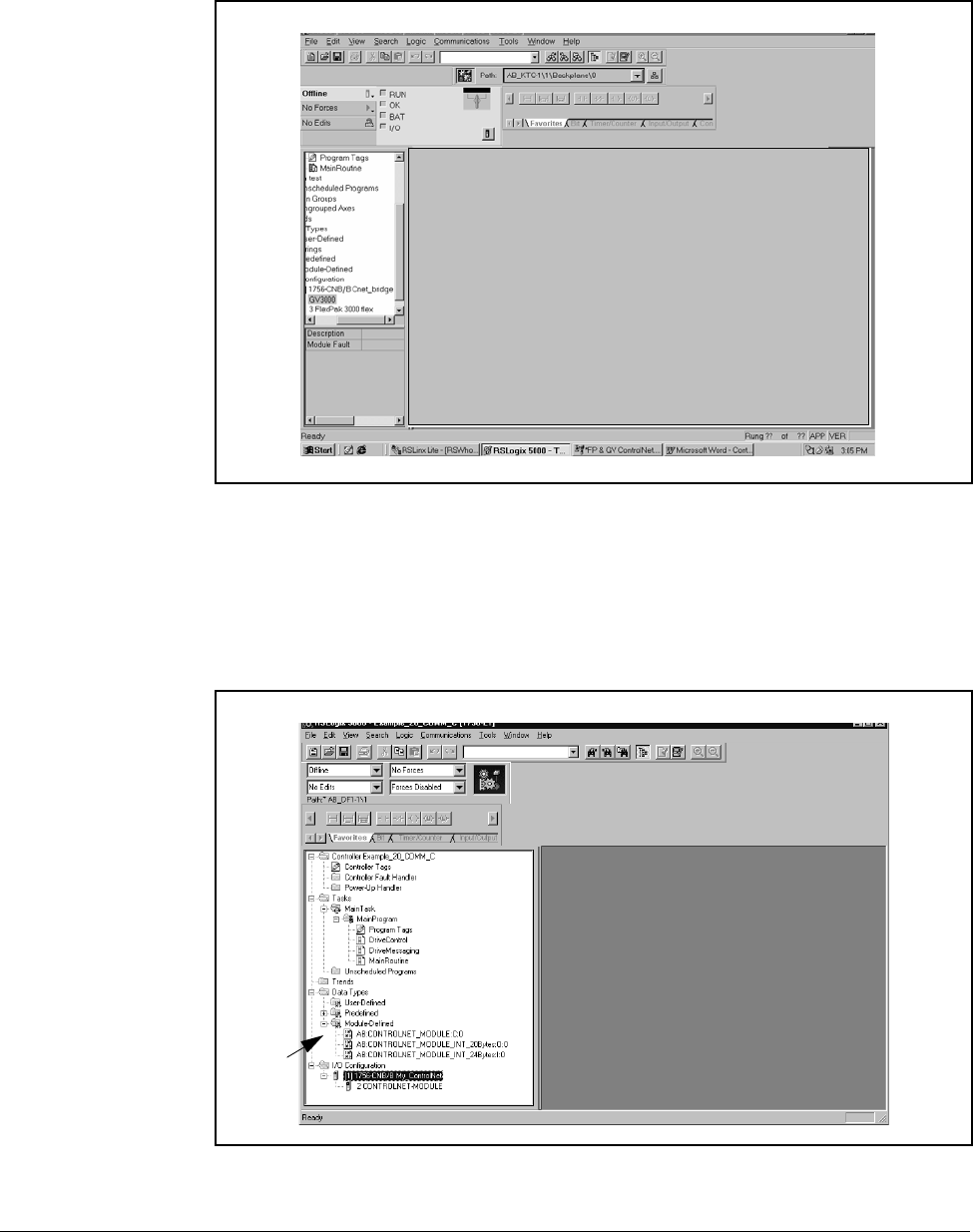

Figure 5.14 – RSLogix: Configure Additional Nodes Screen
Figure 5.15 – RSLogix 5000: Module-Defined Screen
