Installation
2-39
Step 3. Install the ControlNet Option Board in the Drive
Step 3.1 Remove the ControlNet option board from its anti-static wrapper.
Step 3.2 Align the key on the connector of the ControlNet option board ribbon cable
with the key on the Regulator board connector. Press the ribbon cable
connector in until it locks into position.
Step 3.3 Fasten the ControlNet option board to the drive using the screws provided.
Step 3.4 Connect the brown wire of the Network Drop Cable to terminal 1 of the
2-connector terminal strip. Connect the white wire to terminal 2.

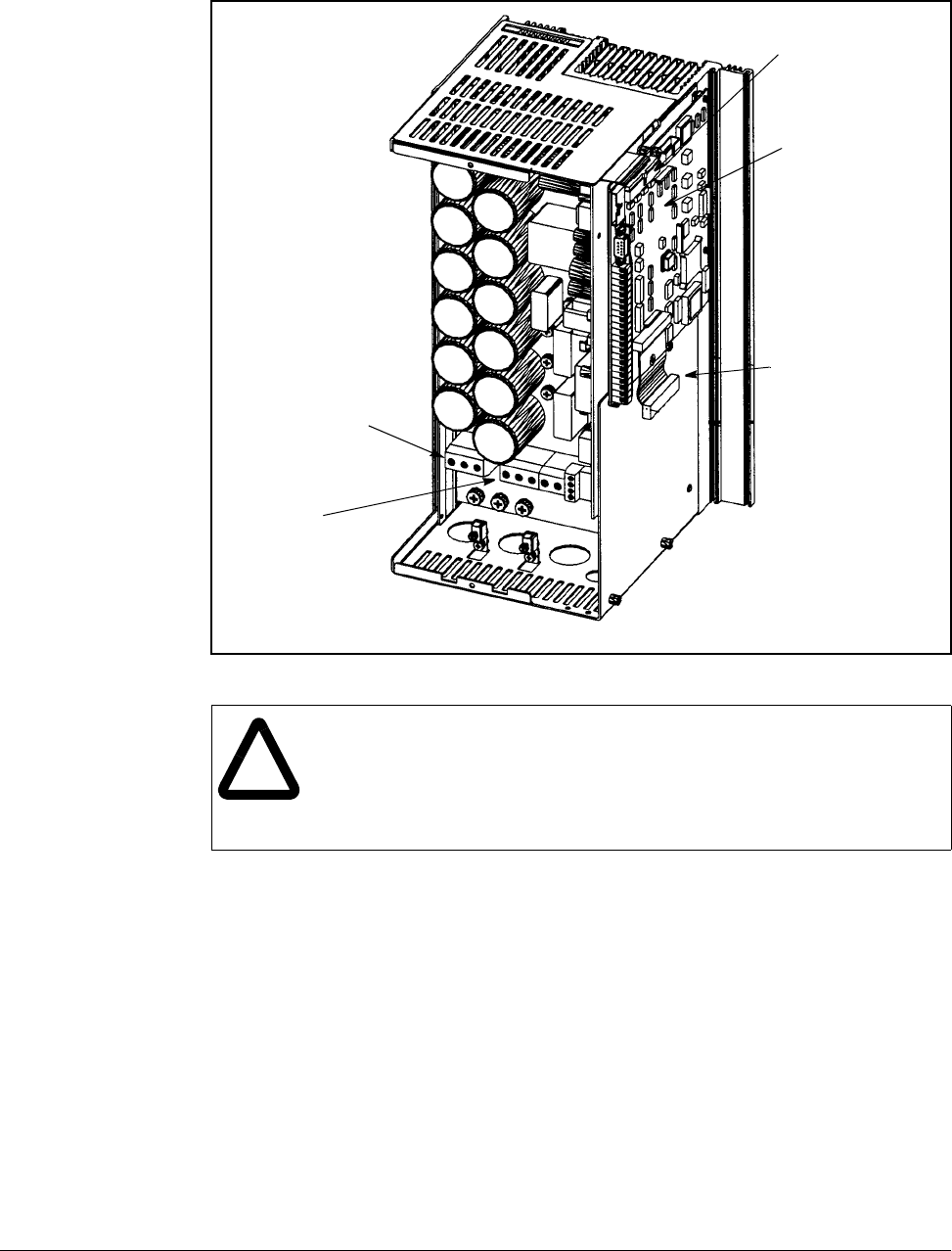

Figure 2.19 – 24 to 30 Amp GV3000/SE Bookshelf Drive (Cover and Front Panel Removed)
!
ATTENTION:The drive contains ESD- (Electrostatic Discharge)
sensitive parts and assemblies. Static control precautions are required
when installing, testing, servicing, or repairing the drive. Erratic machine
operation and damage to, or destruction of, equipment can result if this
procedure is not followed. Failure to observe this precaution can result
in bodily injury.
AC Input Power
Terminals
(L1, L2, L3)
DC Bus
Measuring Points
(–)45, (+)47
Keypad/Display
Cable Connector
Regulator
Board
Regulator Board
Ribbon Cable
