4-13
Programming Reference

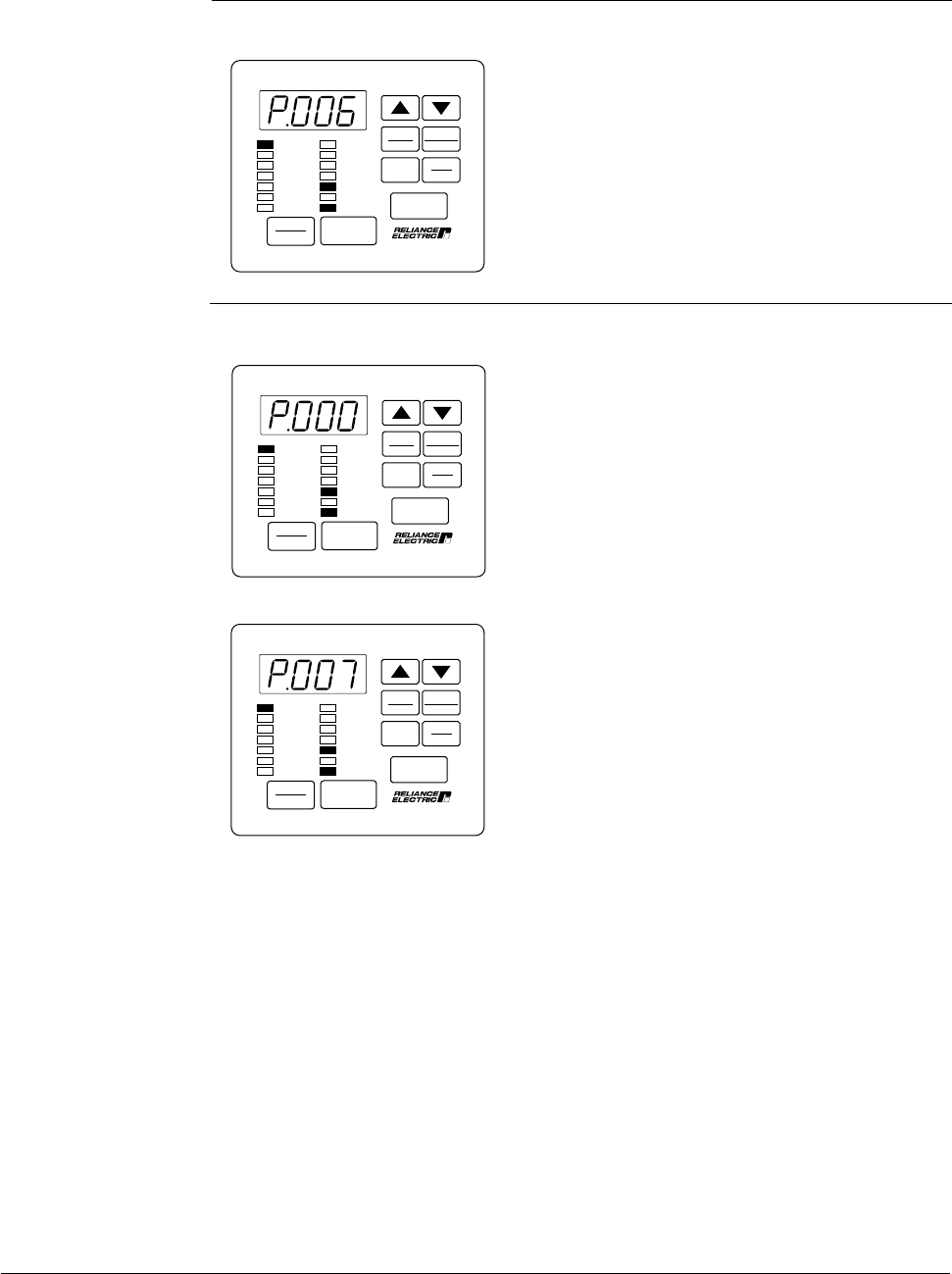

Step 6. Press the ENTER key to select the password.
Step 7. Press the £ key to verify the access status.
P.006 is displayed.
