4-3
Programming Reference
Parameter Name: the name assigned to a parameter number. The parameter
name is not displayed when programming the drive using the keypad/display.
The parameter name is only visible when using the CS3000 software or Operator
Interface Module (OIM).
Parameter Description: a description of the parameter's function.
Parameter Range: the predefined parameter value limits or selections.
Default Setting: the factory default setting.
Parameter Type: identifies whether the parameter is tunable, configurable, or
read only.
Refer also to parameters: a list of associated parameters that may provide
additional or related information.
4.3 Displaying or Changing Parameter Values
Use the following procedure to display or change parameter values:

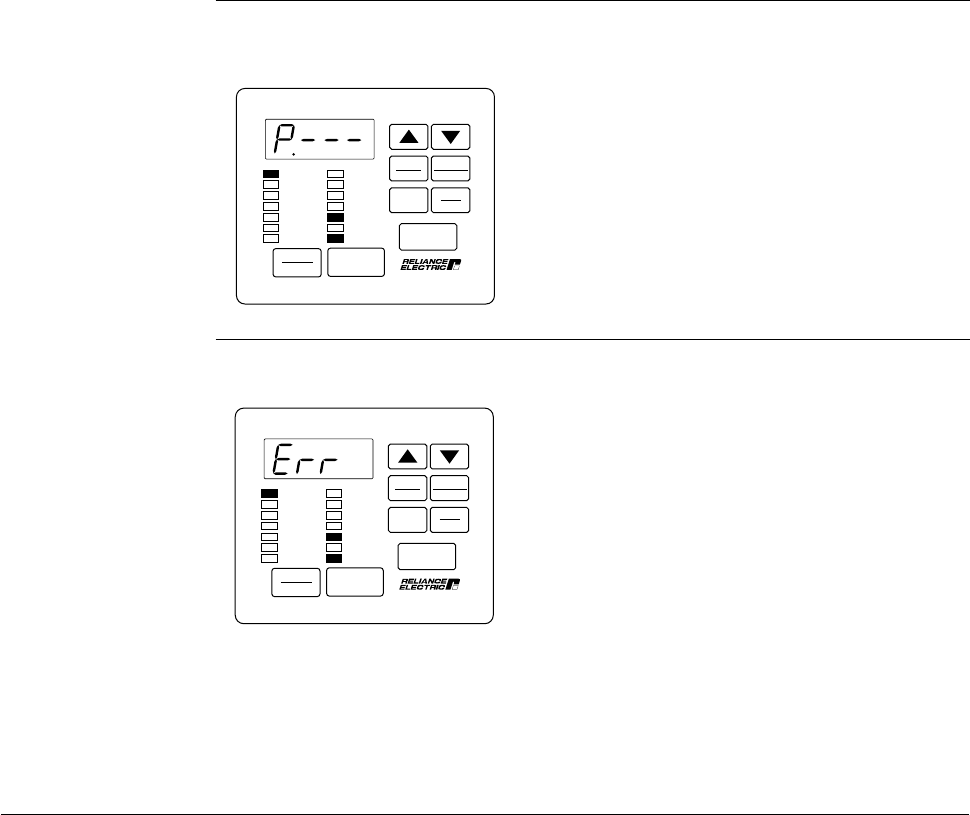

Step 1. Press the PROGRAM key until the PROGRAM LED turns on to enter
program mode.
One of the main parameter menus (P.---,
H.---, U.---, Err, etc.) will be displayed.
Step 2. Use the £ key or the ¥ key to move through the menus.
Note that if P.--- and Err are the only two
menu selections displayed, access to the
Second Menu parameters has been
restricted. A password must be entered into
parameter P.006 in order to access the
Second Menu parameters. Refer to section
4.6 for this procedure.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
