4-2
GV3000/SE 230 VAC Drive, Software Reference Version 6.04

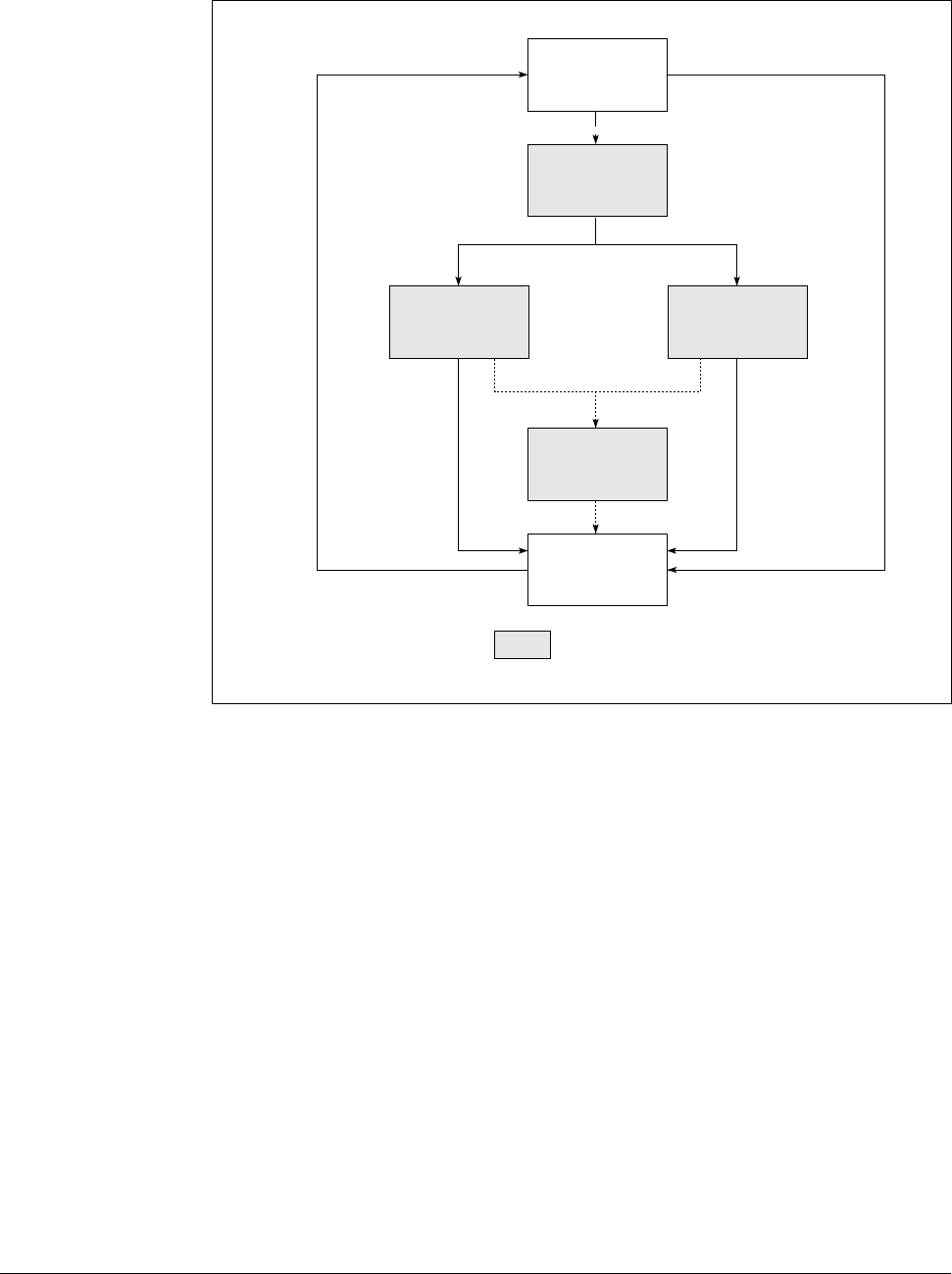

Figure 4.1 – Parameter Menu Structure
4.2 Parameter Types
There are three types of parameters:
Configurable: These parameters can be adjusted or changed only while the drive
is stopped.
Tunable: These parameters can be adjusted or changed while the drive is running
or stopped.
Read only: These parameters cannot be adjusted.
Each parameter is described in detail in this chapter. The following information is
provided for each parameter:
Parameter Number: the unique number assigned to a specific parameter. The
number is preceded by either P, H, U, or r to identify it as a General, Volts/Hertz,
Vector, or optional RMI parameter, respectively. The parameter number is
displayed on the drive's keypad/display.
First Menu
General Parameters
P.000 - P.006
P.048 = U-H (default) P.048 = UEC
If optional RMI board is installed
Error Log
Password must be entered
into P.006 to access these
parameters.
Enter password into P.006
Second Manu
General Parameters
P.007 - P.099
Volts/Hertz
Parameters
H.000 - H.022
Vector
Parameters
U.000 - U.048
RMI
Parameters
r.001 - r.066
