Using the Keypad/Display To Program, Monitor, and Control the Drive

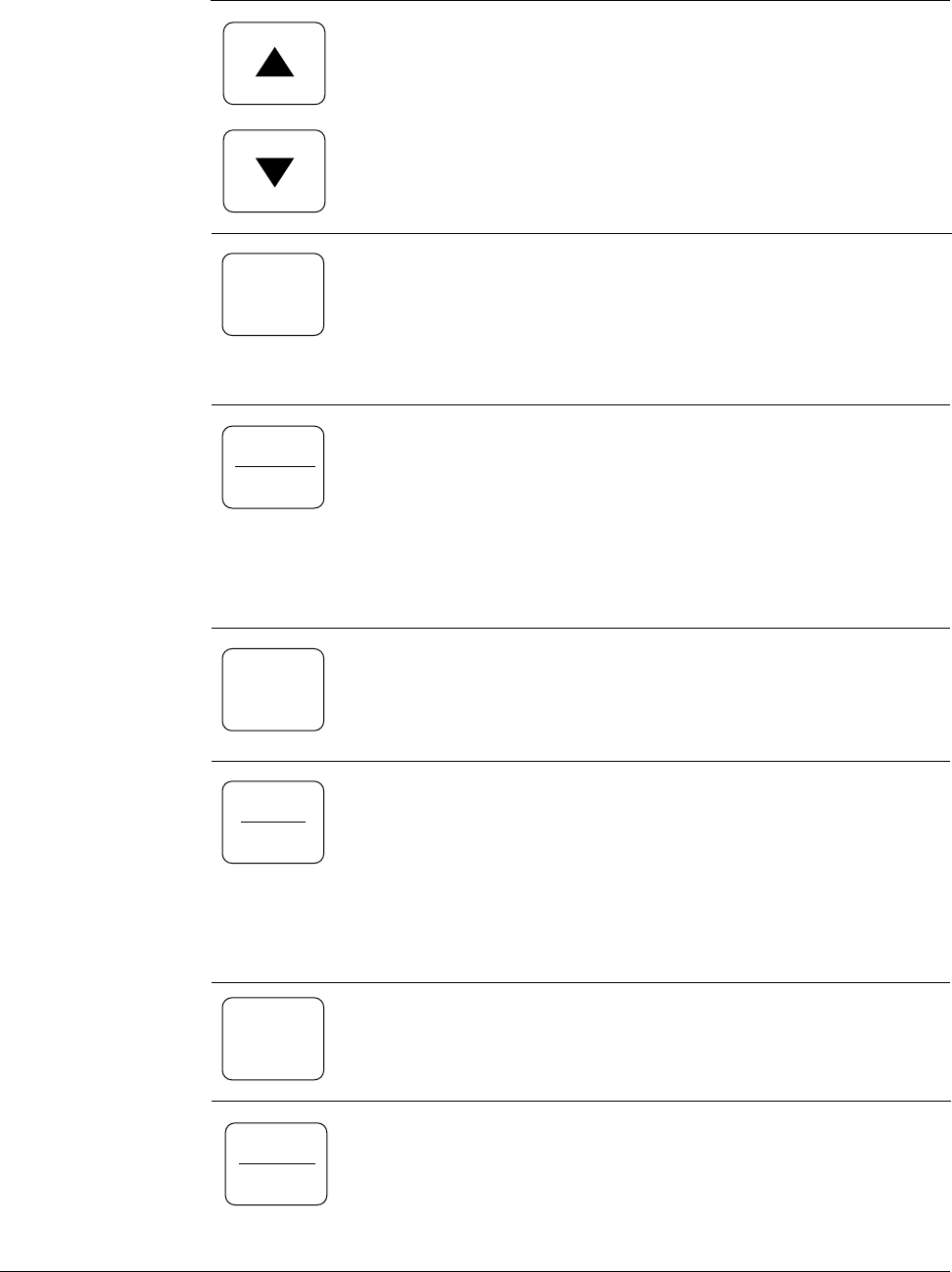

Use the £ and ¥ arrow keys to:
• Step through the drive parameter menus and error log when
the keypad/display is in program mode.
• Increase (or decrease) a numeric value (such as the reference
or a parameter value).
Holding down these keys will increase the scroll speed.
Use the ENTER key to:
• Display a parameter (or a selection) value in program mode
• Save a value
• Move through each monitor display item when in monitor mode
Use the FORWARD/REVERSE key to select the direction of motor
rotation when the control source is local (REMOTE LED is off).
This key is ignored if the control source is not local (REMOTE LED
is on). See the FORWARD and REVERSE LED descriptions for
more information.
Refer to the P.027 (Forward/Reverse Configuration) parameter
description.
Use the PROGRAM key to move between program and monitor
modes. The PROGRAM LED turns on when the keypad/display is
in program mode and turns off when the keypad/display is in
monitor mode.
Use the RUN/JOG key to toggle between run and jog when in local
control (REMOTE LED is off). When run is selected, pressing the
START key results in continuous drive operation. When jog is
selected, pressing the START key results in drive operation only
until the START key is released.
This key is ignored if the control source is not local (REMOTE LED
is on). See the RUN and JOG LED descriptions for more information.
Use the START key to apply power to the motor in local control
(REMOTE LED is off). See the RUNNING LED description for
more information.
If the drive is running (RUNNING LED is on), the STOP/RESET
key stops the drive. If the drive is not running (RUNNING LED is
off), pressing this key resets drive faults. Refer also the STOP/
RESET Disable Parameter (P.055).
ENTER
Forward
Reverse
PROGRAM
RUN
JOG
START
STOP
RESET
