Software Start-Up and Ref. Owner manual

2-35
Starting Up the Drive for Vector Regulation

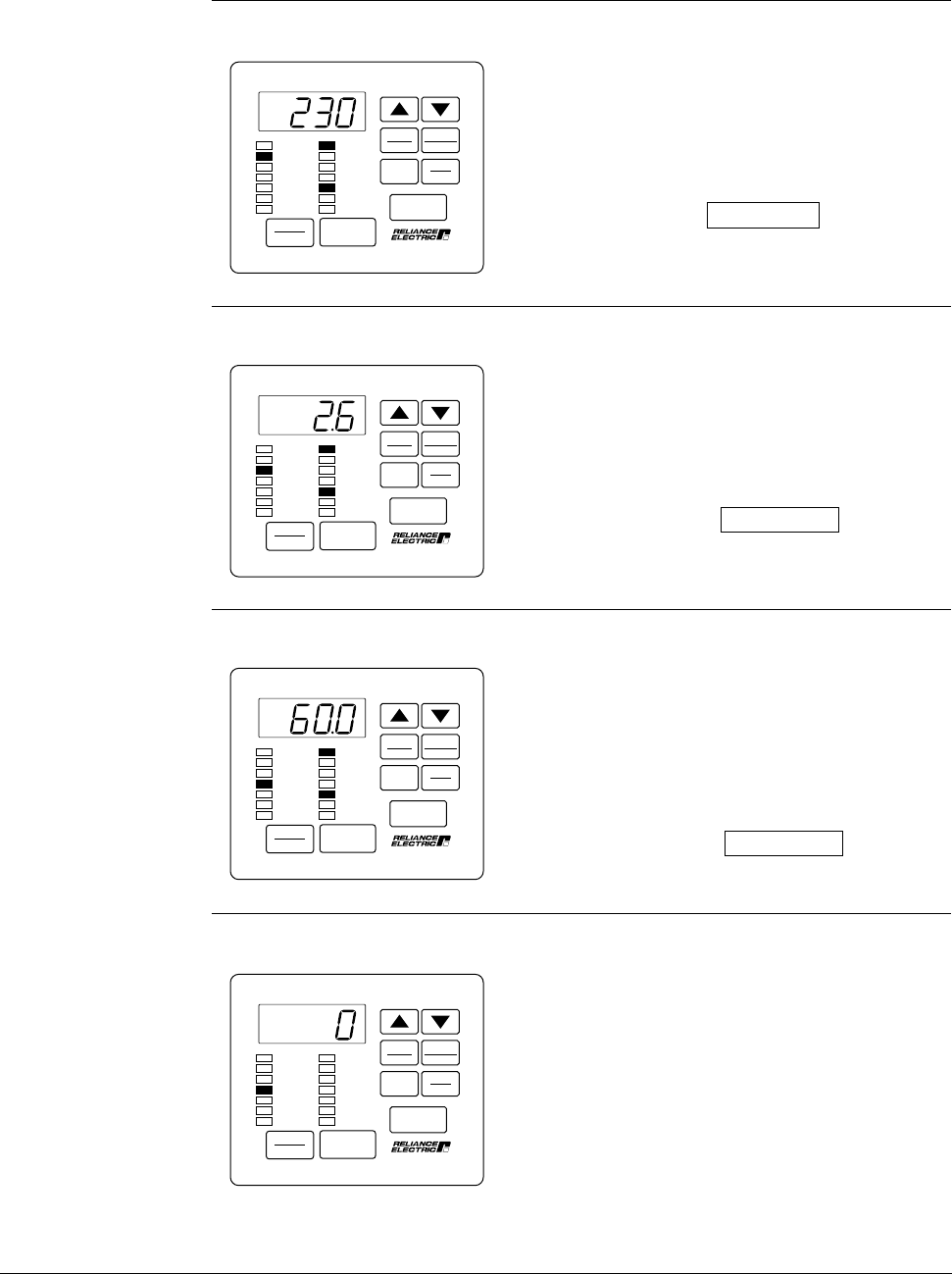

Step 11.3 Press the ENTER key to move to the VOLTS display.
The sample display shows the output volts at
maximum speed. Your actual reading may
be different.
VALUE READ:
Step 11.4 Press the ENTER key to move to the AMPS display.
This sample display shows the output amps
at maximum speed. Your actual reading
may be different.
VALUE READ:
Step 11.5 Press the ENTER key to move to the Hz display.
This sample display shows the hertz value
corresponding to the value set into P.004,
Maximum Speed. Your actual reading may
be different.
VALUE READ:
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 11.6 Press the STOP/RESET key.
The driven motor should stop as
programmed in P.025, Stop Type.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
